Celto Pro · LF Drivers Series
15PF800-8
SKU: 15PF800-8
15-inch premium mid-bass transducer featuring high dynamics and 800 W RMS power handling.
Request a Quote for This Product Request system design Talk to an audio expert · +90 216 469 83 352-year distributor warranty · Original product · Engineering support
Overview

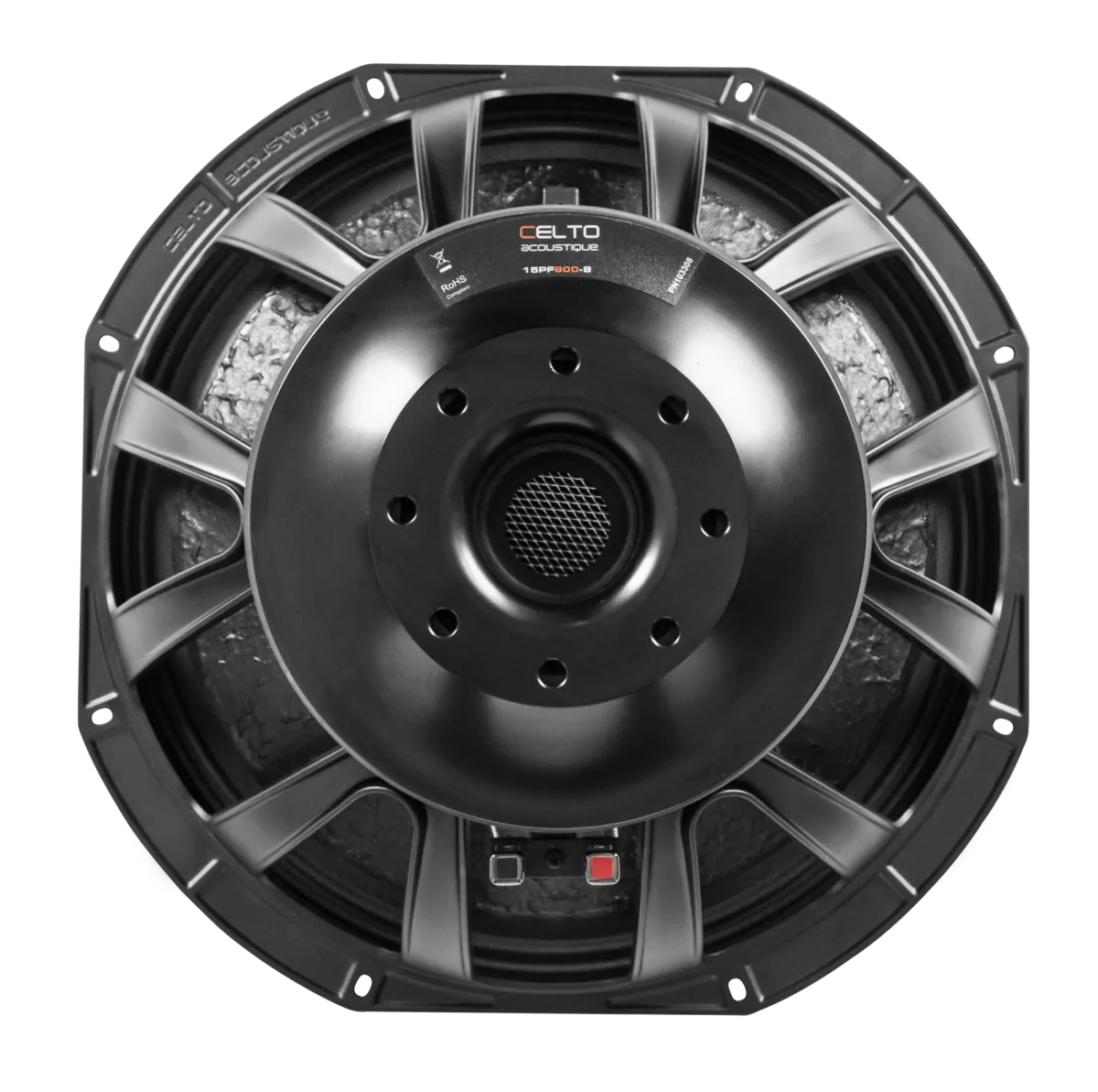

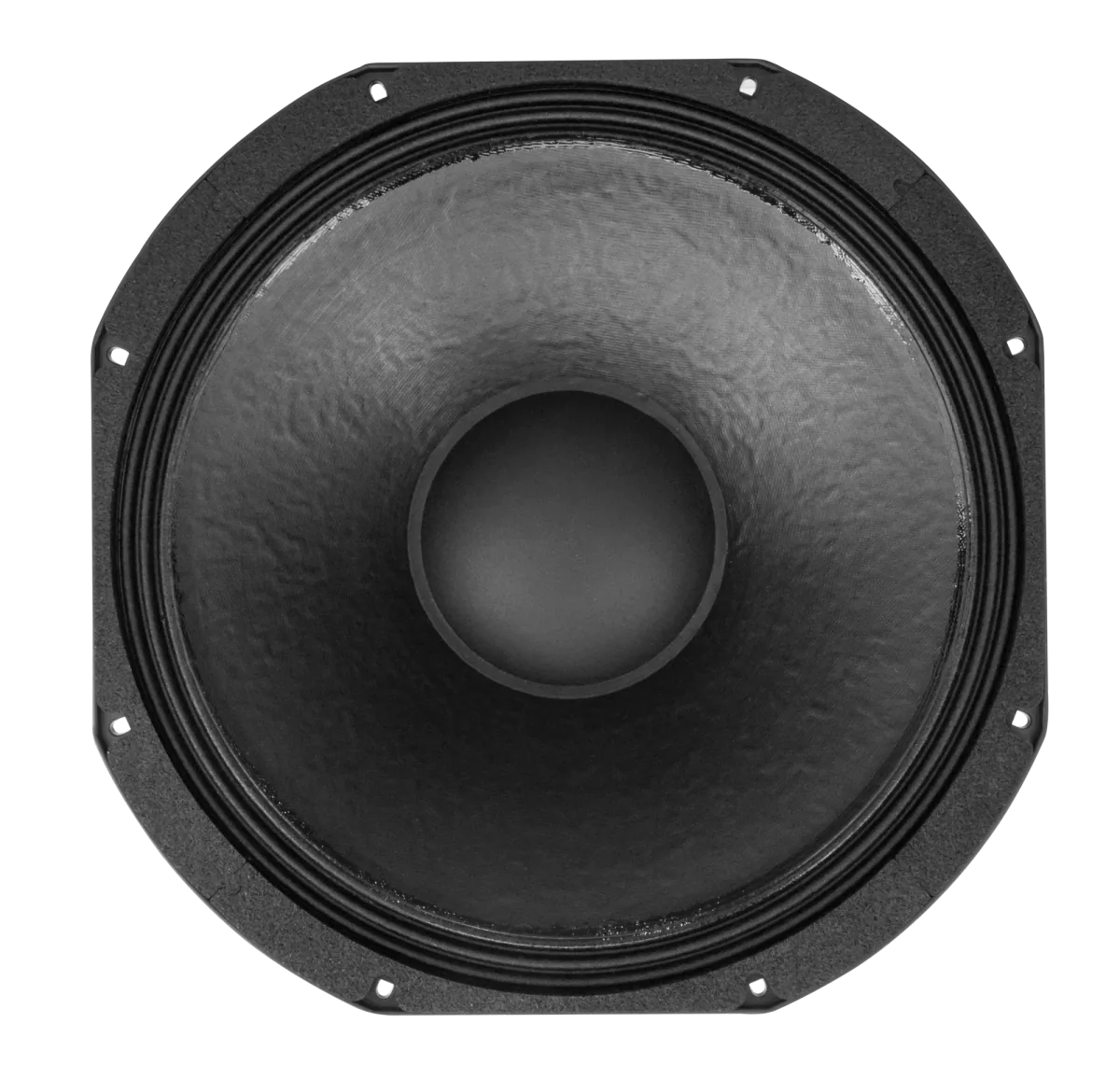

The Celto Pro 15PF800-8 is a high-performance premium mid-bass transducer engineered for professional sound reinforcement, touring, and fixed installations. Featuring a 15-inch (380mm) nominal diameter, it delivers 800 W RMS (AES) power handling and 98 dB (1W/1m) sensitivity, ensuring exceptional dynamic response.
The 3.6-inch (91mm) voice coil utilizes a 2-layer inside/outside CCAW winding rated up to 240°C on a DUPONT GFB fiberglass former. With a ±8.5 mm Xmax and a 44 Hz resonance frequency (Fs), it provides precise and powerful low-mid reproduction. Weighing 8.5 kg, this transducer is an ideal choice for high-end acoustic designs requiring reliability and acoustic precision.
Technical Specifications
15PF800-8 · SKU 15PF800-8
| ACOUSTIC PERFORMANCE | |
|---|---|
| Nominal Impedance | 8 Ω |
| Power Handling RMS (AES) | 800 W |
| DRIVERS | |
| Voice Coil Diameter | 3.6" (91mm) |
| Voice Coil Height (Hvc mm) | 22 |
| Voice Coil Air Gap (Hag mm) | 10 |
| Voice Coil Winding | 2 layers IN/OUT |
| Voice Coil Material | 240°C PI CCAW |
| Voice Coil Former | DUPONT GFB fiberglass |
| SIGNAL PROCESSING | |
| Sensitivity (1W/1m) | 98 dB |
| PHYSICAL | |
| Rms (kg/s) | 3.21 |
| Net Weight (kg) | 8.5 |
| OTHER | |
| Nominal Diameter | 15" (380mm) |
| Fs (Hz) | 44 |
| Qms | 9.304 |
| Qes | 0.495 |
| Qts | 0.47 |
| Vas (liters) | 126 |
| Mms (g) | 108 |
| Sd (cm²) | 855 |
| Re (Ω) | 5.4 |
| BL (Tm) | 18.05 |
| η0 (%) | 2.09 |
| Le (mH @1kHz) | 1.26 |
| Cms (mm/N) | 0.121 |
| Xmax (±mm) | ±8.5 |
| Xmech (peak-peak mm) | 42 |
| Overall Diameter (mm) | 400 |
| Bolt Circle Diameter (mm) | 378 |
| Baffle Cutout Diameter (mm) | 353 |
| Flange/Gasket Thickness (mm) | 10 |
| Overall Depth (mm) | 164 |
