Celto Pro · iFIX Series
iFIX6 G2
SKU: IFIX6-G2
Compact 6-inch coaxial fixed installation speaker delivering 150 W RMS power with exceptional sonic clarity.
- Max SPL
- 111 dB RMS / 117 dB Peak
- Frequency Response
- 65 Hz – 22 kHz
- Driver Configuration
- 6" + 1.1" koaksiyel
- Dispersion
- 85° conical
- Weight
- 5 kg (11.0 lb)
2-year distributor warranty · Original product · Engineering support
Overview

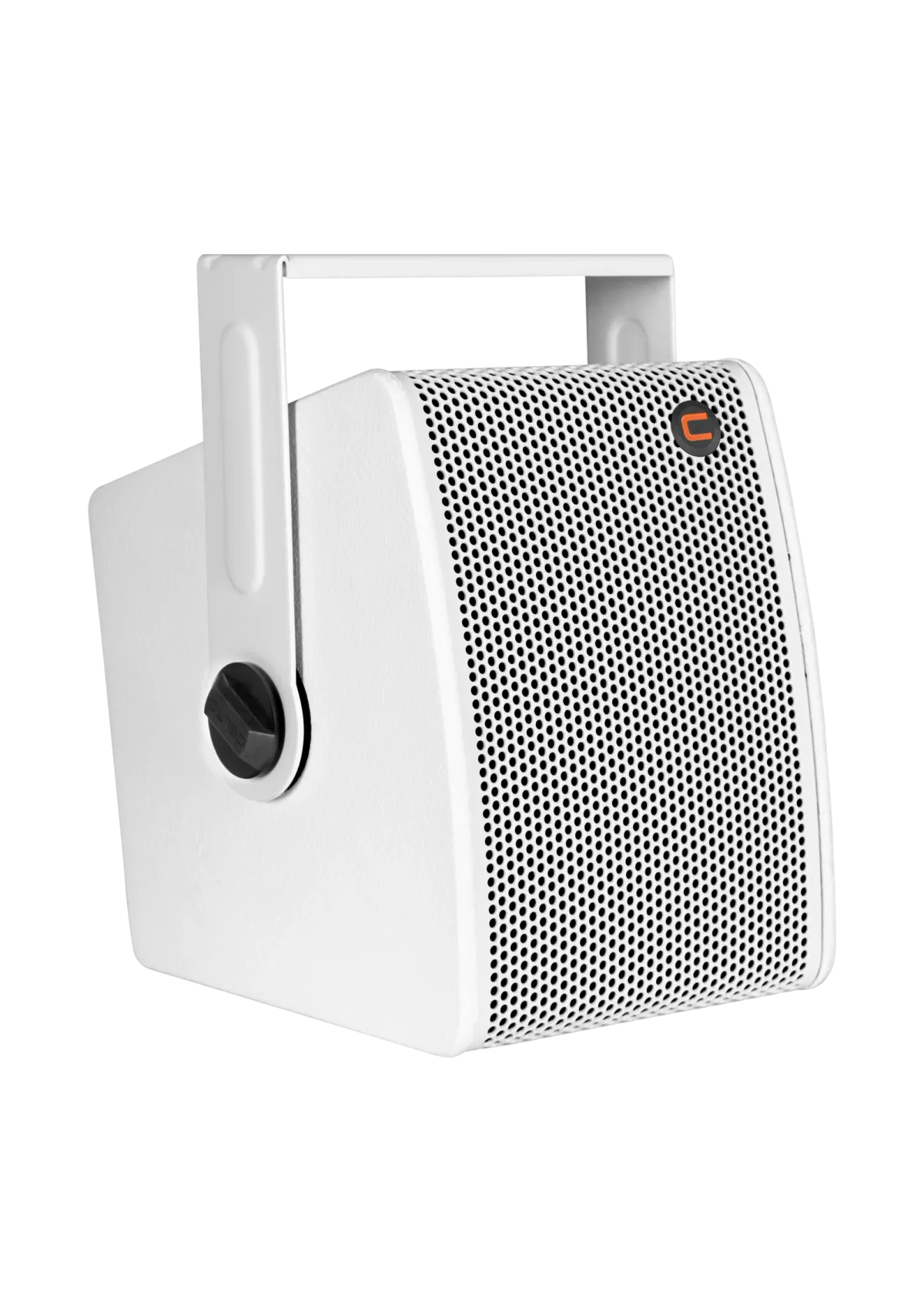

The Celto Pro iFIX6 G2 is a compact, full-range coaxial speaker engineered specifically for fixed installation projects where premium sound quality and seamless architectural integration are required. Constructed from exterior-grade Birch plywood with a robust tongue-and-groove design and textured waterborne coating, it ensures long-term durability.

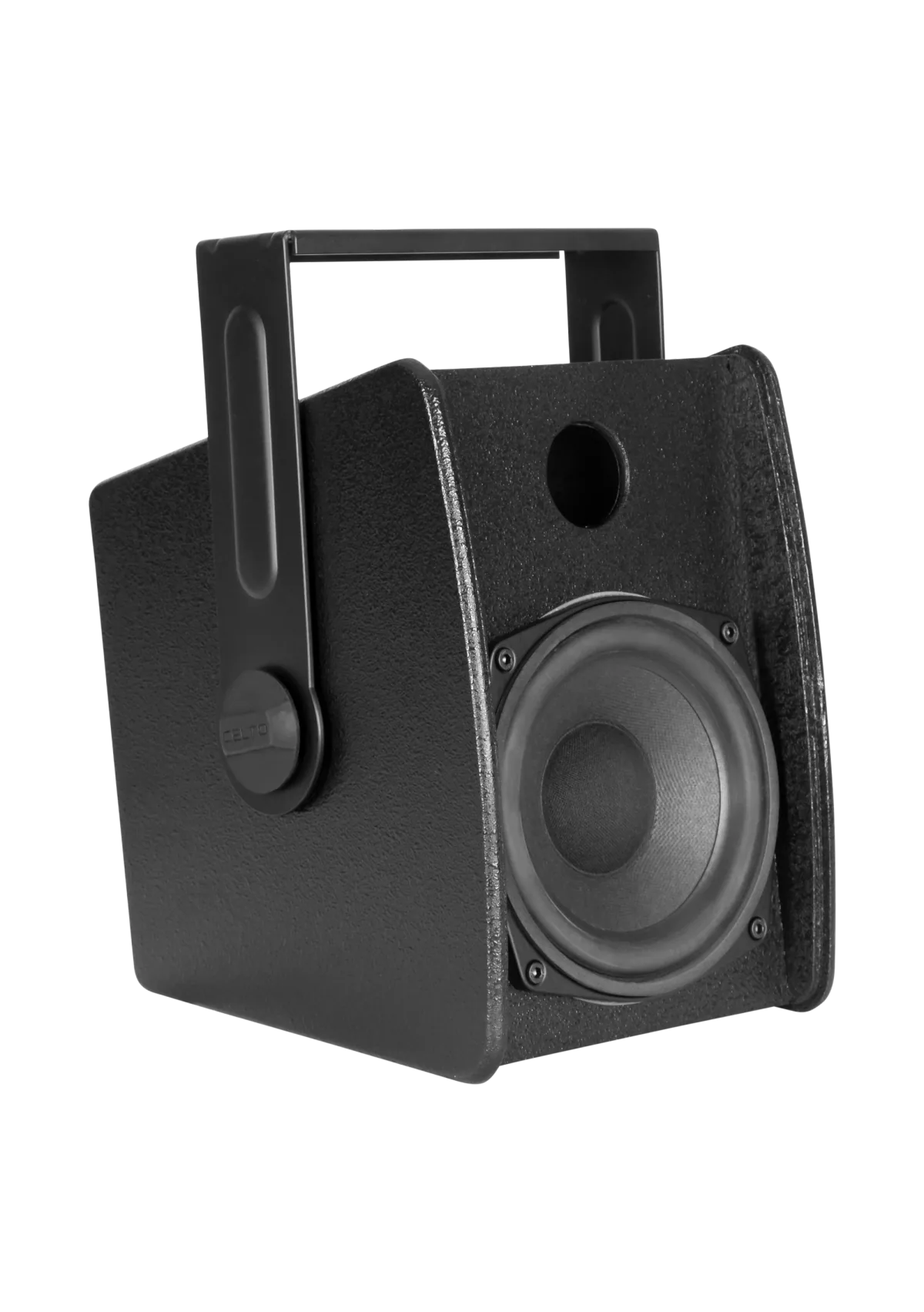

At its core, the 6-inch coaxial CELTO 6CXF150 transducer features a 1.5-inch LF voice coil and a 1.1-inch HF voice coil, delivering a smooth frequency response from 65 Hz to 22000 Hz. With a 12 Ohm nominal impedance, it allows for efficient amplifier loading in multi-speaker configurations. The 85-degree conical directivity provides uniform coverage, while the included multi-function Yoke and optional mounting accessories offer versatile installation options. Phoenix connectors facilitate secure and straightforward wiring in professional environments.
117 dB
MAXIMUM PEAK SPL
65 Hz – 22 kHz · Frequency Response
Technical Specifications
iFIX6 G2 · SKU IFIX6-G2
| ACOUSTIC PERFORMANCE | |
|---|---|
| Speaker type | FIX Install Full Range Coaxial Speaker |
| Power Handling (AES standard) | 150 W RMS / 600 W Peak |
| Nominal impedance | 12 Ω |
| Average sensitivity | 90 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 111 dB RMS / 117 dB Peak |
| Frequency response (-6 dB no preset) | 65~22000 Hz |
| Nominal directivity (-6 dB) | 85° conical |
| Crossover | 2.5 kHz 2-way passive network |
| DRIVERS | |
| LF | 6" coaxial CELTO 6CXF150 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil | 1.5" / 38 mm |
| HF | CELTOPCDN250 (in coaxial mounting) |
| HF RMS power (AES standard) | 20 W above 1.5 kHz |
| HF Exit | 0.75" / 19 mm |
| HF Voice coil diameter | 1.1" / 28 mm |
| HF Diaphragm | C400 PEI dome |
| CABINET & MOUNTING | |
| Cabinet | Exterior grade Birch plywoodTongue & Groove construction |
| Cabinet finish | Textured Waterborne Black coatingAcoustic PU foam behind Front grill |
| Floor monitor use | No |

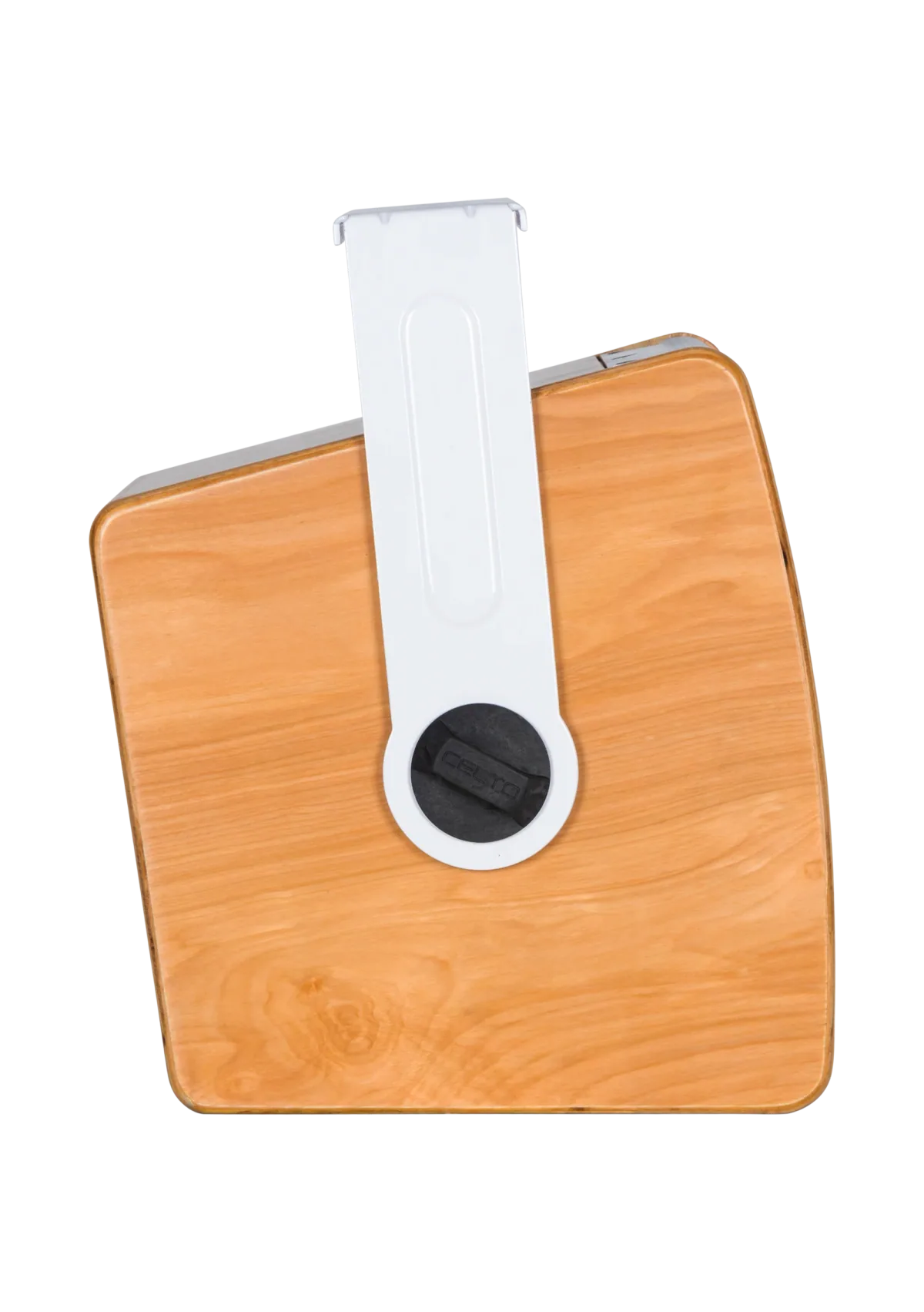

| Flying hardware | Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton) |
| Mounting hardware | Yesfor Yoke, wall mount bracket and CCA-MA |
| CONNECTIVITY | |

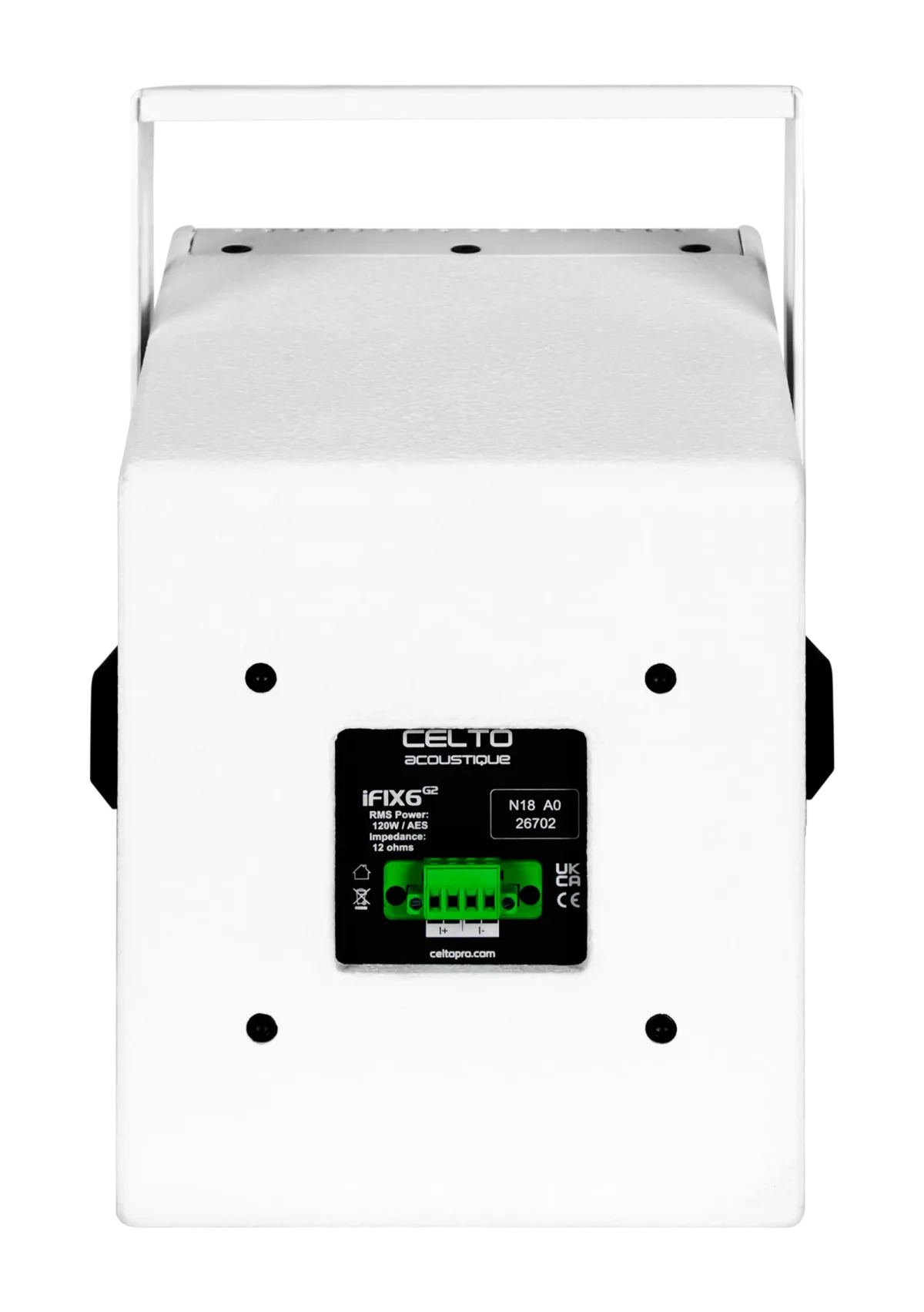

| Connectivity | PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch |
| PHYSICAL | |
| Speaker size (HxWxD) | 260 × 190 × 250 mm (10.2 × 7.5 × 9.8 in) |
| Speaker Weight | 5 kg (11.0 lb) |
| Shipping information | 7.5 kg370 x 360 x 340 mm |
| Accessories | CCA-MA (mounting adapter)WMBRKT20 (wall mount bracket)Rust-Free Aluninum grill |
iFIX6 G2 · 2-year distributor warranty · Original product · Engineering support
Request a Quote for This ProductDownloads
iFIX Series — Other Models
Frequently Asked Questions
What is the price of iFIX6 G2?
Pricing depends on your project configuration. Contact our engineering team to determine the most suitable setup and receive a current quote.
What does the distributor warranty cover?
Every system we install is our direct responsibility for two years against manufacturing defects, with scheduled measurement, calibration and maintenance support.
How is product originality guaranteed?
We import all required parts and products directly from the manufacturer's factory, preserving the authenticity of the system.
How does the design & quote process work?
Let us build the acoustic infrastructure of your project to engineering standards with needs analysis, detailed venue exploration, and accurate technical guidance.
