Celto Pro · iFIX Series
iFIX13S G2
SKU: IFIX13S-G2
A professional installation subwoofer combining deep bass performance and a compact footprint, featuring a 15-inch driver and 800W RMS power handling.
- Max SPL
- 126 dB RMS / 132 dB Peak
- Frequency Response
- 42 Hz – 1.5 kHz
- Driver Configuration
- 15"
- Dispersion
- Omni in usable range
- Weight
- 25 kg (55.1 lb) net
2-year distributor warranty · Original product · Engineering support
Overview

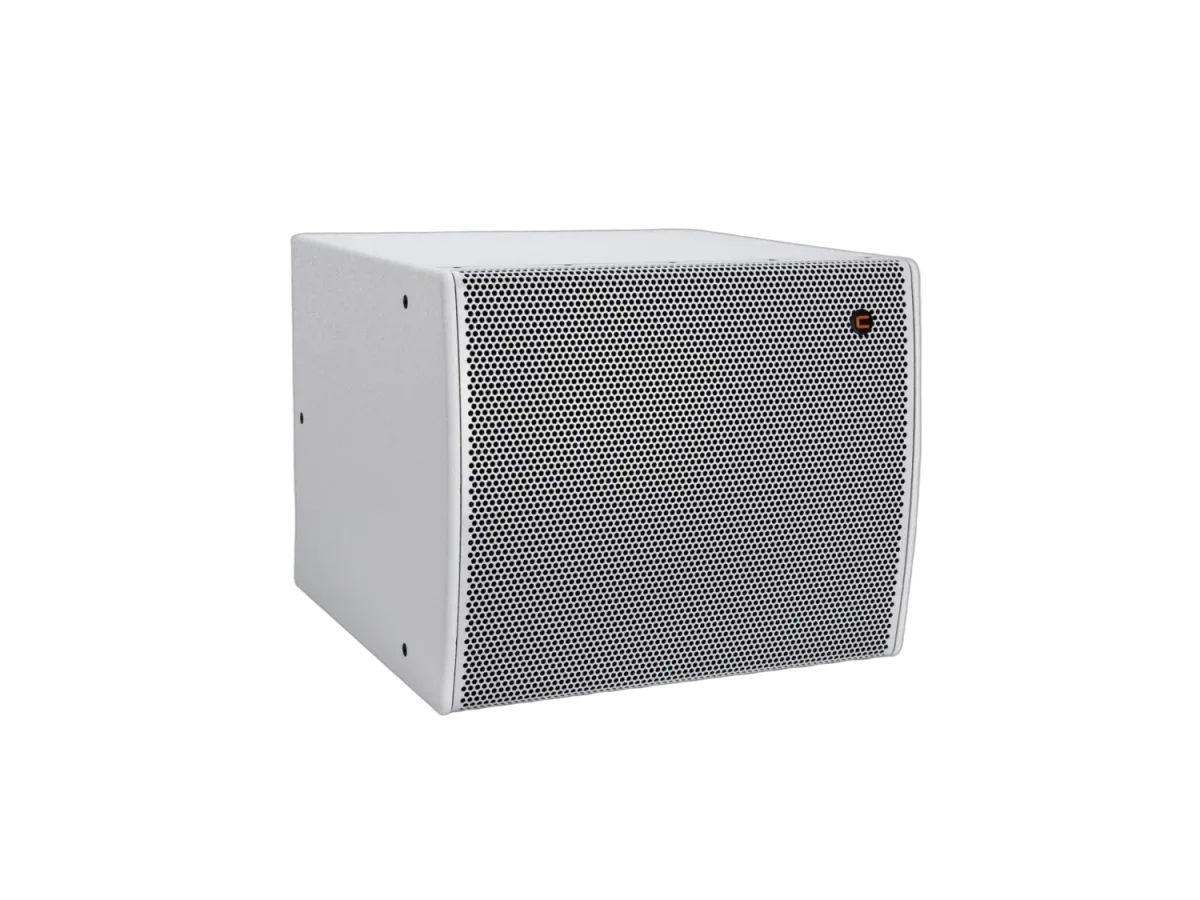

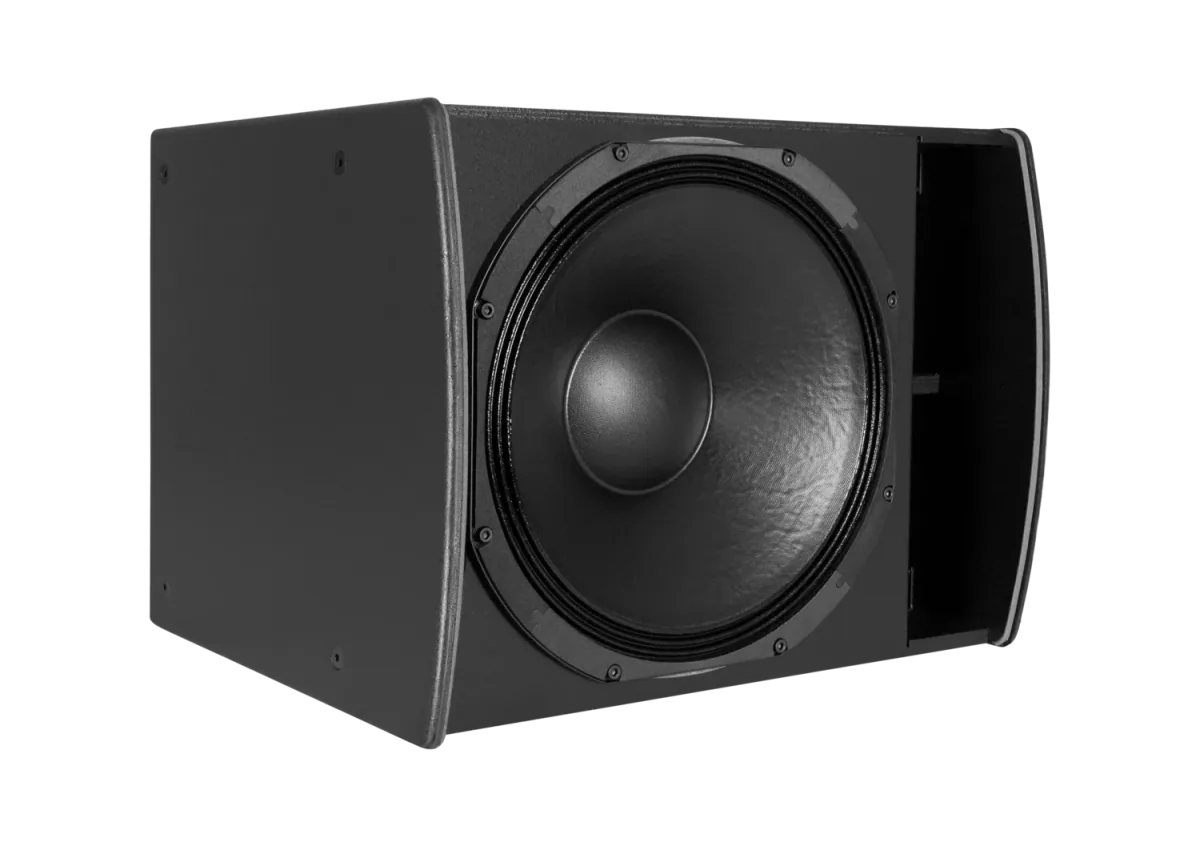

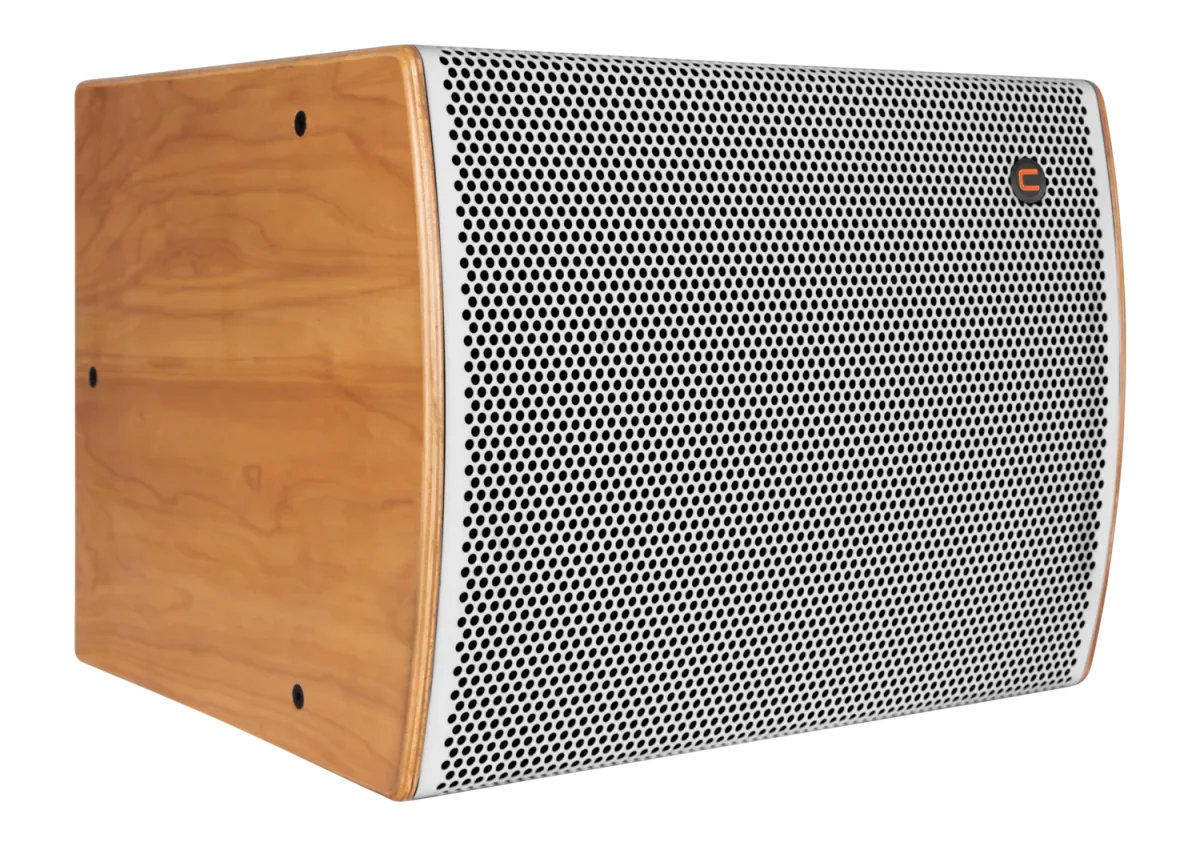

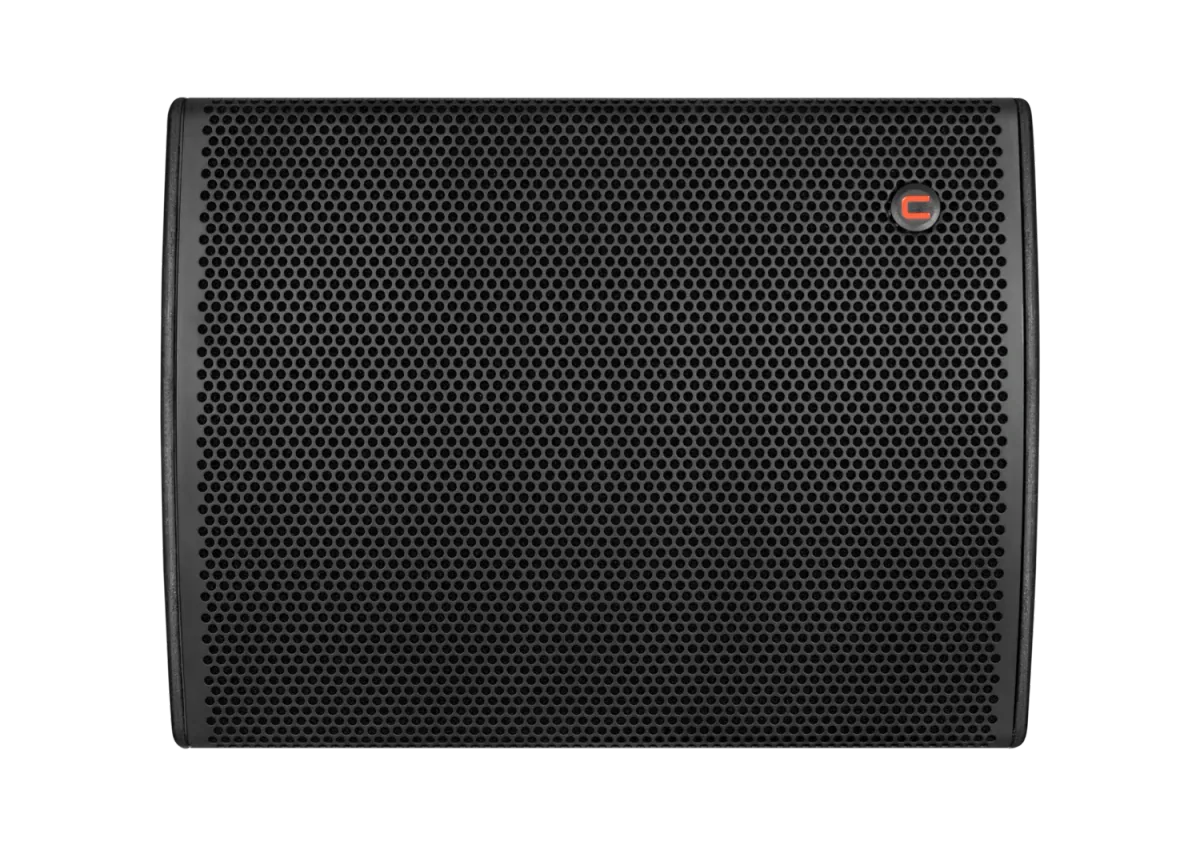

The Celto Pro iFIX13S G2 is a compact subwoofer system engineered specifically for projects where architectural integration and high-performance audio are paramount. Equipped with a custom 15-inch CELTO 15PF800-8 transducer (featuring a 3.
6-inch voice coil and die-cast aluminum chassis), it delivers a powerful and precise low-frequency response down to 42 Hz, with a power handling of 800 W RMS (3200 W Peak). The cabinet is constructed from exterior-grade birch plywood using tongue-and-groove joints, finished with a textured waterborne black coating for maximum durability. An acoustic PU foam backing behind the rust-free aluminum front grille protects the internal components. Designed strictly for active crossover operation, the iFIX13S G2 utilizes Phoenix connectors to ensure clean and secure wiring in permanent installations. With 8 integrated M8 rigging points and optional iFIXG2-BRKT installation brackets, it offers versatile mounting solutions for demanding architectural environments.
132 dB
MAXIMUM PEAK SPL
42 Hz – 1.5 kHz · Frequency Response
Technical Specifications
iFIX13S G2 · SKU IFIX13S-G2
| ACOUSTIC PERFORMANCE | |
|---|---|
| Speaker type | Subwoofer |
| Power Handling (AES standard) | 800 W RMS / 3200 W Peak |
| Nominal impedance | 8 Ω |
| Average sensitivity | 97 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 126 dB RMS / 132 dB Peak |
| Frequency response (-6 dB no preset) | 42~1500 Hz |
| Nominal directivity (-6 dB) | Omni in usable range |
| Crossover | No, active mode only |
| DRIVERS | |
| LF | 15" CELTO 15PF800-8 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil | 3.6" / 91 mm |
| HF | N / A |
| HF RMS power (AES standard) | N / A |
| HF Exit | N / A |
| HF Voice coil diameter | N / A |
| HF Diaphragm | N / A |
| CABINET & MOUNTING | |
| Cabinet | Exterior grade Birch plywoodTongue & Groove construction |
| Cabinet finish | Textured Waterborne Black coatingAcoustic PU foam behind Front grill |
| Floor monitor use | No |
| Flying hardware | 8 M8 points |
| Mounting hardware | No |
| CONNECTIVITY | |
| Connectivity | PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch |
| PHYSICAL | |
| Speaker size (HxWxD) | 415 × 545 × 500 mm (16.3 × 21.5 × 19.7 in) |
| Speaker Weight | 25 kg (55.1 lb) net |
| Shipping information | 30 kg610 x 530 x 685 mm |
| Accessories | iFIXG2-BRKT (Installation brackets)Rust-Free Aluminium grill |
iFIX13S G2 · 2-year distributor warranty · Original product · Engineering support
Request a Quote for This ProductDownloads
