Celto Pro · S Series
SQ8800
SKU: SQ8800
High-performance 4-channel power amplifier in a compact 1U rack space, featuring active PFC power supply and 4th generation Class D output stage.
Request a Quote for This Product Request system design Talk to an audio expert · +90 216 469 83 352-year distributor warranty · Original product · Engineering support
Overview

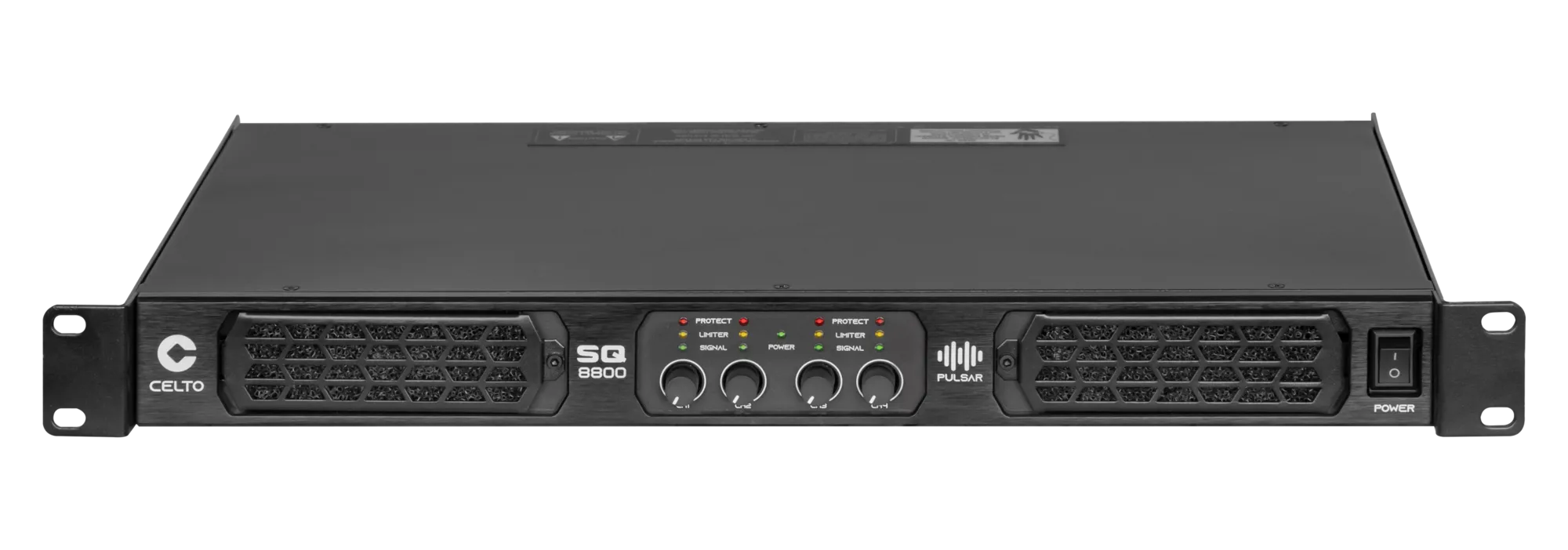

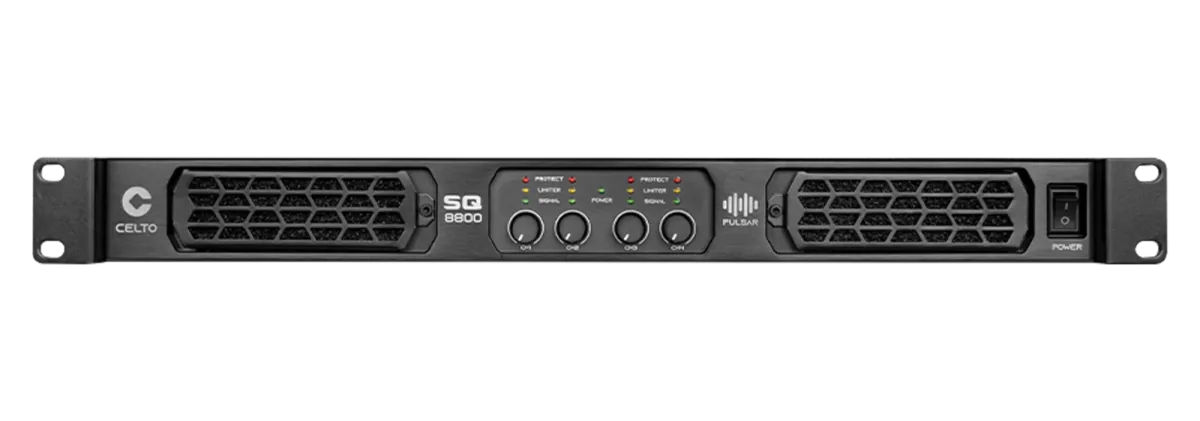

The Celto Pro SQ8800 is a 4-channel power amplifier engineered to deliver high power density and pristine audio quality within a compact 1U chassis. Delivering 1300W RMS per channel at 8 Ohms and 2200W RMS at 4 Ohms, it is built to withstand the demands of both touring and permanent installations.
The proprietary 4th generation discrete Class D output stage operates at 92% efficiency, paired with an active PFC switch-mode power supply supporting universal AC input (90-260V). Its preamplifier stage utilizes MUSE® Fine Gold capacitors and TrueRMS JFET VCA limiters to ensure ultra-low noise and natural sound reproduction. Weighing only 6 kg, the SQ8800 features Neutrik XLR inputs and SpeakON outputs for secure, professional connectivity.
Technical Specifications
SQ8800 · SKU SQ8800
| ACOUSTIC PERFORMANCE | |
|---|---|
| Frequency Response (-1 dB) | 10 – 25 000 Hz |
| Input Impedance | 20 kΩ balanced |
| POWER OUTPUT | |
| Bridge 8Ω | 2x 4400W |
| Bridge 4Ω | 2x 4000W |
| SIGNAL PROCESSING | |
| Signal to Noise Ratio (A-weighted) | > 107 dB |
| Voltage Gain | 34 dB (50 times voltage) |

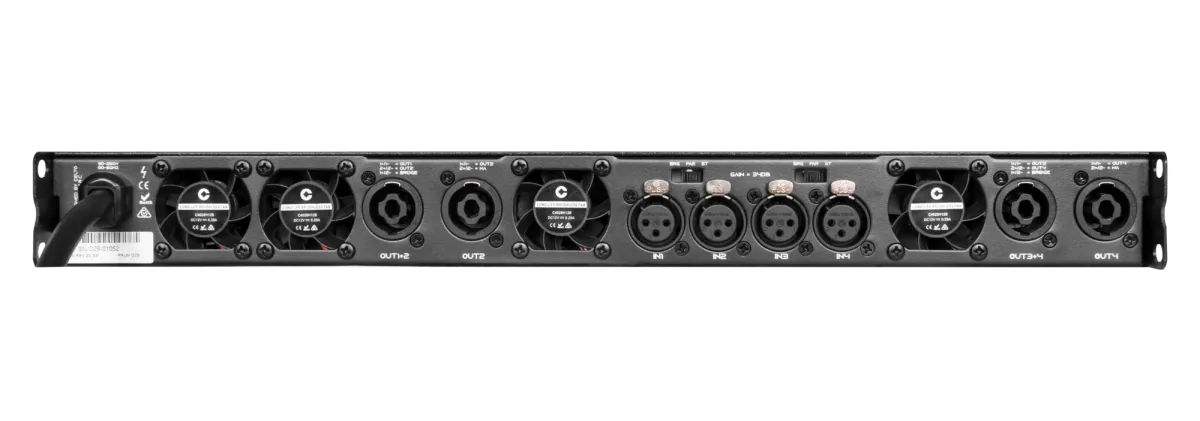

| Input Connectors | 4x Balanced NEUTRIK XLR |
| CONNECTIVITY | |
| Power Connector | SEETRONIC PowerCon |
| Output Connectors | 4 ×NEUTRIK SpeakON NL4MP |
| PHYSICAL | |
| Channels | 4 |
| Dimensions (W×H×D) mm | 482×45×281 (1U) |
| Weight Net | 6 kg (13.2 lb) |
| OTHER | |
| RMS Power 8Ω (per ch., EIA 1 kHz 1% THD) | 1300W |
| RMS Power 4Ω (per ch.) | 2200W |
| RMS Power 2Ω (per ch.) | 2000W |
| Typical THD | < 0.03 % at 1W / < 0.09 % at half power |
| Crosstalk (1 kHz) | > 75 dB |
| Slew Rate | > 60 V/µs |
| Damping Factor (8Ω) | > 800 (internal) |
| Preamp | Ultra-low noise and distortion circuit with MUSE® Fine Gold capacitors and TrueRMS JFET VCA limiters |
| Output Stage / Class | Proprietary High-Speed High-Current 4th generation discrete Class D (92% efficiency) |
| Power Supply | Switch mode with active PFC (Universal AC input from 90 to 260V) |
| Cooling | Temperature regulated long life brush-less fans, front to back airflow |
| series shortname | sseries |
SQ8800 · 2-year distributor warranty · Original product · Engineering support
Request a Quote for This ProductDownloads
S Series — Other Models
Frequently Asked Questions
What is the price of SQ8800?
Pricing depends on your project configuration. Contact our engineering team to determine the most suitable setup and receive a current quote.
What does the distributor warranty cover?
Every system we install is our direct responsibility for two years against manufacturing defects, with scheduled measurement, calibration and maintenance support.
How is product originality guaranteed?
We import all required parts and products directly from the manufacturer's factory, preserving the authenticity of the system.
How does the design & quote process work?
Let us build the acoustic infrastructure of your project to engineering standards with needs analysis, detailed venue exploration, and accurate technical guidance.
2-year distributor warranty · Original product · Engineering support
