Celto Pro · S Series
SD10000
SKU: SD10000
A high-efficiency 2-channel professional power amplifier delivering 10,000W in a compact 1U rack space, featuring 4th generation Class D topology and active PFC.
Request a Quote for This Product Request system design Talk to an audio expert · +90 216 469 83 352-year distributor warranty · Original product · Engineering support
Overview

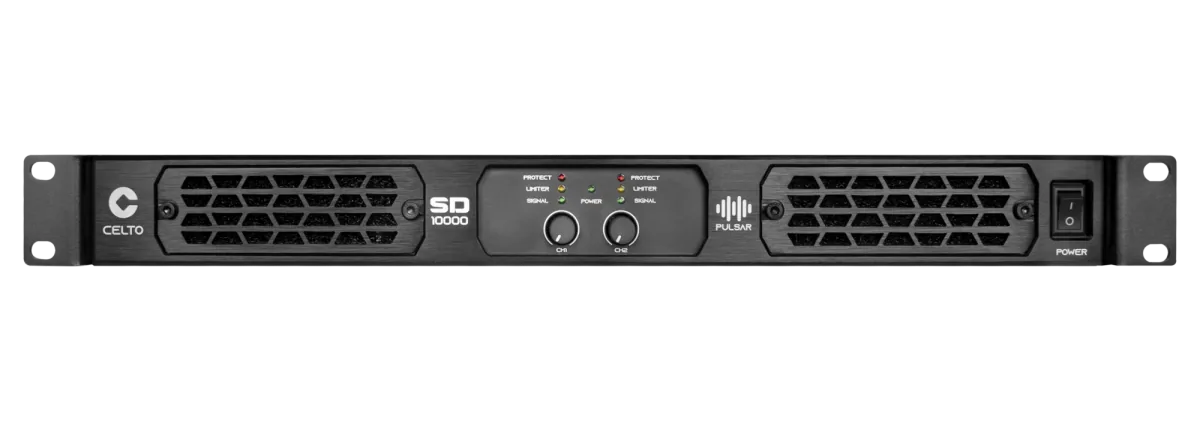

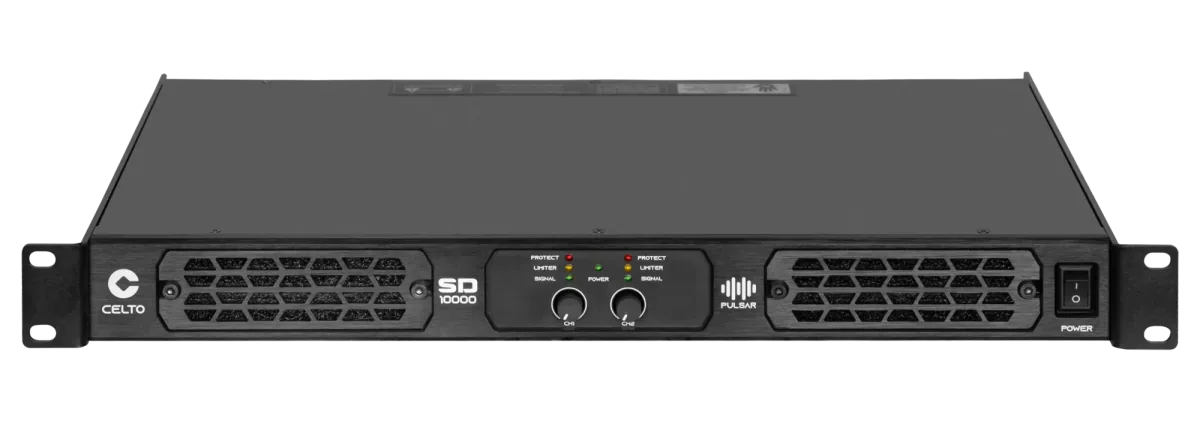

The Celto Pro SD10000 is a high-power, two-channel professional amplifier designed to deliver exceptional performance within a compact 1U rack space. Engineered for demanding sound reinforcement projects and touring applications, it delivers 2800W RMS per channel at 8 ohms, 5000W RMS at 4 ohms, and up to 10000W RMS in 8-ohm bridge mode.
The amplifier features a proprietary 4th generation high-speed, high-current discrete Class D output stage operating at 92% efficiency. Its switch-mode power supply with active PFC (Power Factor Correction) ensures stable operation across universal AC inputs from 90V to 260V. The preamplifier stage utilizes premium MUSE® Fine Gold capacitors and TrueRMS JFET VCA limiters to maintain ultra-low noise and distortion. Weighing only 8 kg, the SD10000 incorporates temperature-regulated brushless fans with front-to-back airflow and industry-standard Neutrik and Seetronic connectors, providing a reliable and robust solution for high-end acoustic installations.
Technical Specifications
SD10000 · SKU SD10000
| ACOUSTIC PERFORMANCE | |
|---|---|
| Frequency Response (-1 dB) | 10 – 25 000 Hz |
| Input Impedance | 20 kΩ balanced |
| POWER OUTPUT | |
| Bridge 8Ω | 1x 10000W |
| Bridge 4Ω | 1x 10600W |
| SIGNAL PROCESSING | |
| Signal to Noise Ratio (A-weighted) | > 108 dB |
| Voltage Gain | 34 dB (50 times voltage) |

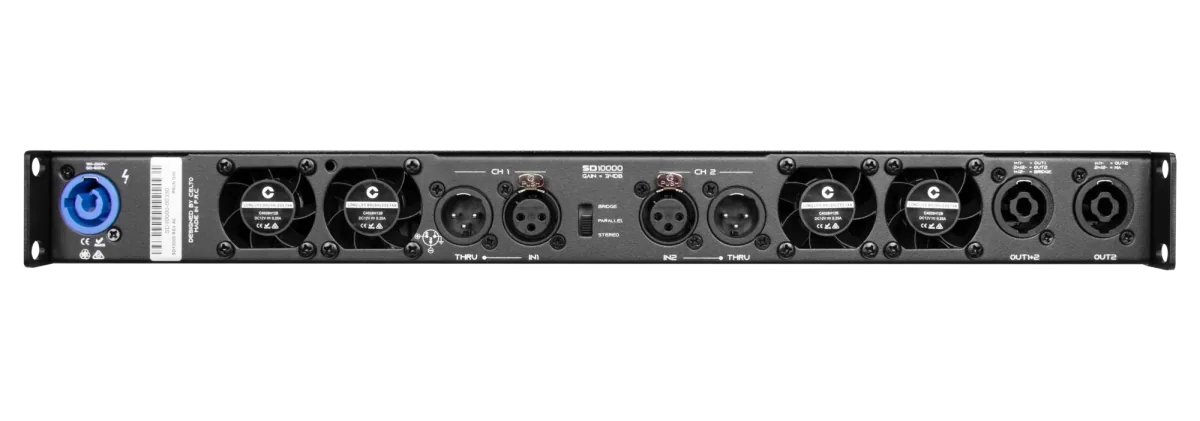

| Input Connectors | 4x Balanced NEUTRIK XLR |
| CONNECTIVITY | |
| Power Connector | SEETRONIC PowerCon |
| Output Connectors | 4x NEUTRIK SpeakON NL4MP |
| PHYSICAL | |
| Channels | 2 |
| Dimensions (W×H×D) mm | 482×45×326 (1U) |
| Weight Net | 8 kg (17.6 lb) |
| OTHER | |
| RMS Power 8Ω (per ch., EIA 1 kHz 1% THD) | 2800W |
| RMS Power 4Ω (per ch.) | 5000W |
| RMS Power 2Ω (per ch.) | 5300W |
| Typical THD | < 0.03 % at 1W / < 0.09 % at half power |
| Crosstalk (1 kHz) | > 75 dB |
| Slew Rate | > 60 V/µs |
| Damping Factor (8Ω) | > 800 (internal) |
| Preamp | Ultra-low noise and distortion circuit with MUSE® Fine Gold capacitors and TrueRMS JFET VCA limiters |
| Output Stage / Class | Proprietary High-Speed High-Current 4th generation discrete Class D (92% efficiency) |
| Power Supply | Switch mode with active PFC (Universal AC input from 90 to 260V) |
| Cooling | Temperature regulated long life brush-less fans, front to back airflow |
| series shortname | sseries |
