Celto Pro · PM Series
PM15V
SKU: PM15V

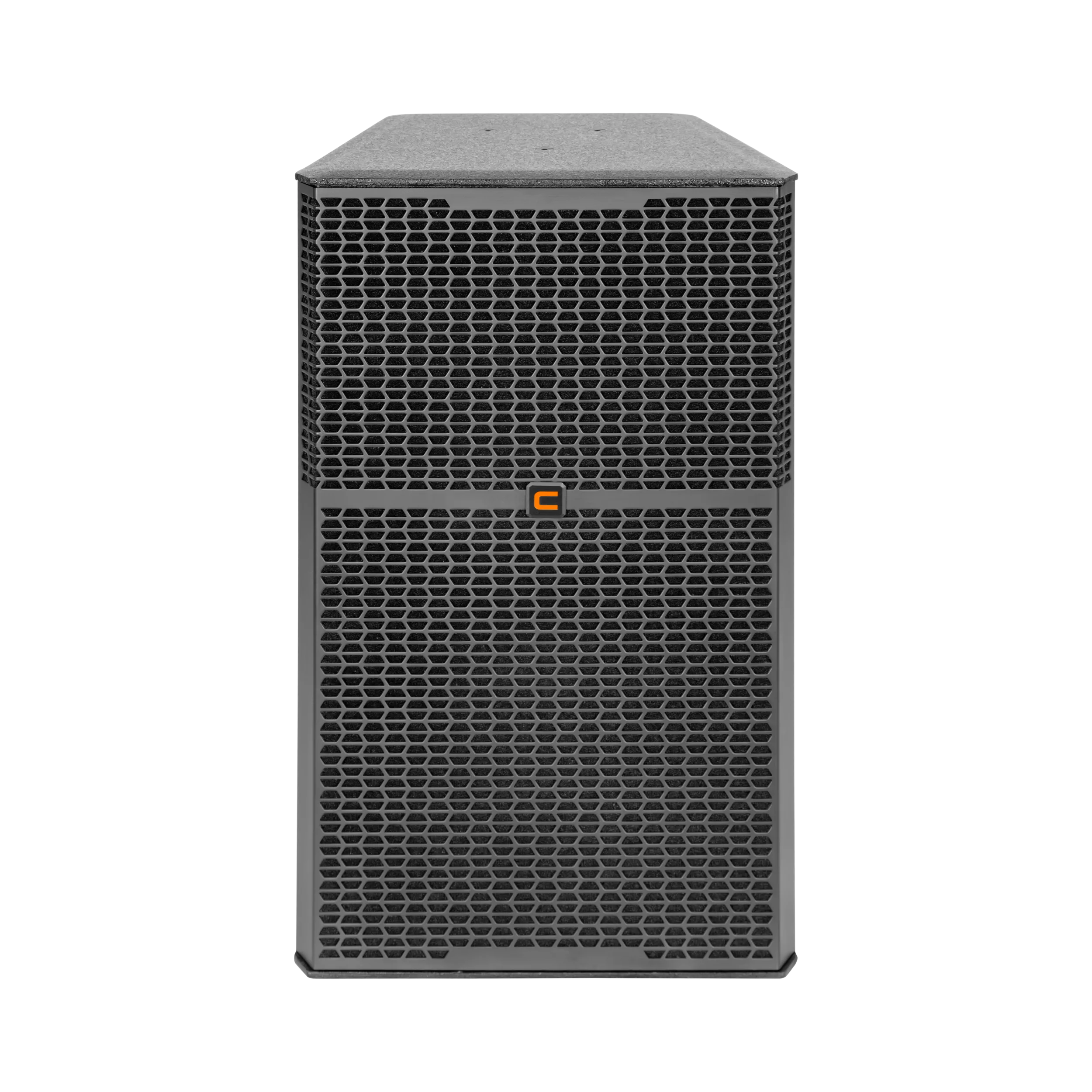

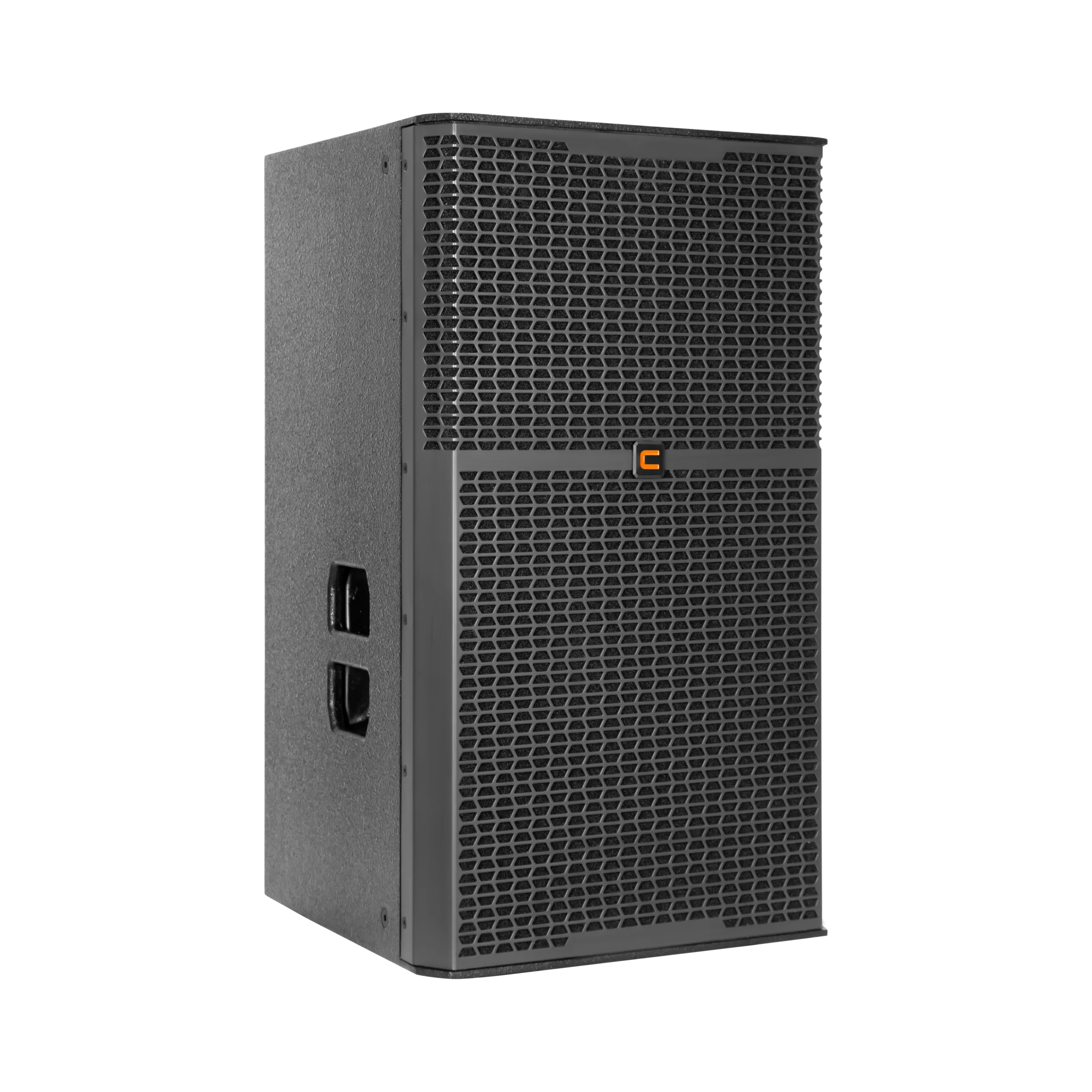

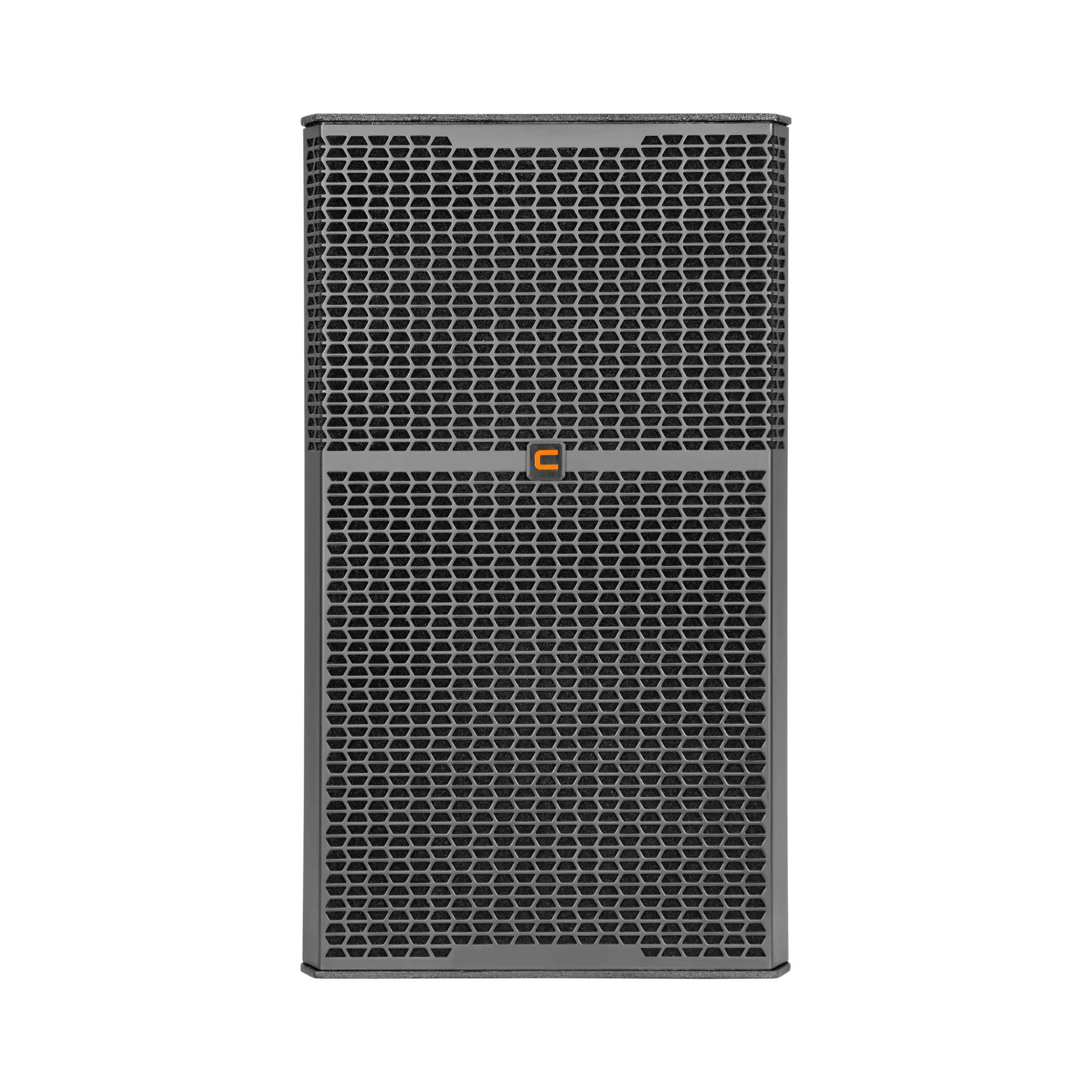

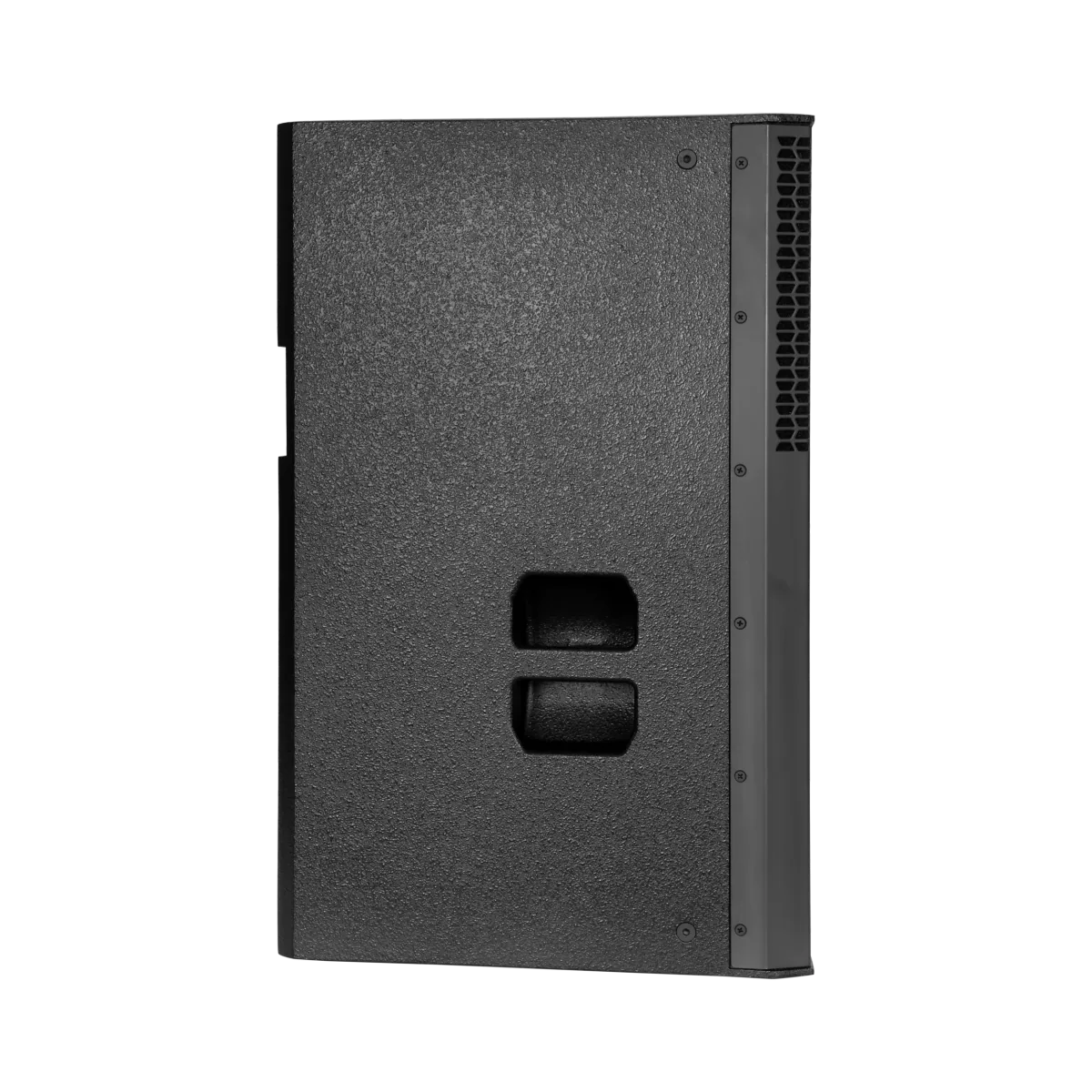

A professional loudspeaker with a birch plywood cabinet that combines carbon dome diaphragm technology and a 15-inch Celto bass driver to offer 500W RMS power and a wide frequency response.
- Max SPL
- 125 dB RMS / 131 dB Peak
- Frequency Response
- 42 Hz – 26 kHz
- Driver Configuration
- 15" + 1.7"
- Dispersion
- 80° (H) x 50° (V)
- Weight
- 32 kg (70.5 lb)
2-year distributor warranty · Original product · Engineering support
Technical Specifications
PM15V · SKU PM15V
| ACOUSTIC PERFORMANCE | |
|---|---|
| Speaker type | Multi-purpose full range |
| Power Handling (AES standard) | 500 W RMS / 2000 W Peak |
| Nominal impedance | 8 Ω |
| Average sensitivity | 98 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 125 dB RMS / 131 dB Peak |
| Frequency response (-6 dB no preset) | 42~26000 Hz |
| Nominal directivity (-6 dB) | 80° (H) x 50° (V) |
| Crossover | 1.6 kHz 2-way passive network |
| DRIVERS | |
| LF | 15" CELTO 15GN501-8 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil | 3.6" / 91 mm |
| HF | CELTOHFD44/C |
| HF RMS power (AES standard) | 60 W above 1.5 kHz |
| HF Exit | 1" / 25 mm |
| HF Voice coil diameter | 1.7" / 44 mm |
| HF Diaphragm | Carbon dome + PI Surround |
| CABINET & MOUNTING | |
| Cabinet | Exterior grade Birch PlywoodTongue & Groove construction |
| Cabinet finish | Textured Waterborne Black coatingAcoustic PU foam behind Front grill |
| Floor monitor use | No |
| Flying hardware | 9 M8 points |
| Mounting hardware | Ø35 mm socket (0° and 10°) |
| CONNECTIVITY | |
| Connectivity | Genuine NEUTRIK 2pcs Speakon NL4MP |
| PHYSICAL | |
| Speaker size (HxWxD) | 720 × 410 × 450 mm (28.3 × 16.1 × 17.7 in) |
| Speaker Weight | 32 kg (70.5 lb) |
| Shipping information | 39 kg820 x 510 x 550 mm |
| Accessories | PM15-YOKECPC-70 (pole bar with crank)WMBRKT60 (wall mounting bracket) |
PM15V · 2-year distributor warranty · Original product · Engineering support
Request a Quote for This ProductPM Series — Other Models
Frequently Asked Questions
What is the price of PM15V?
Pricing depends on your project configuration. Contact our engineering team to determine the most suitable setup and receive a current quote.
What does the distributor warranty cover?
Every system we install is our direct responsibility for two years against manufacturing defects, with scheduled measurement, calibration and maintenance support.
How is product originality guaranteed?
We import all required parts and products directly from the manufacturer's factory, preserving the authenticity of the system.
How does the design & quote process work?
Let us build the acoustic infrastructure of your project to engineering standards with needs analysis, detailed venue exploration, and accurate technical guidance.
