Celto Pro · CSW Series
CSW118V
SKU: CSW118V
High-performance, multi-purpose 18-inch vented subwoofer with 1200W RMS power handling.
- Max SPL
- 127 dB RMS / 134 dB Peak
- Frequency Response
- 34 Hz – 1.5 kHz
- Driver Configuration
- 18"
- Dispersion
- Omni in usable range
- Weight
- 40 kg (88.2 lb)
2-year distributor warranty · Original product · Engineering support
Overview

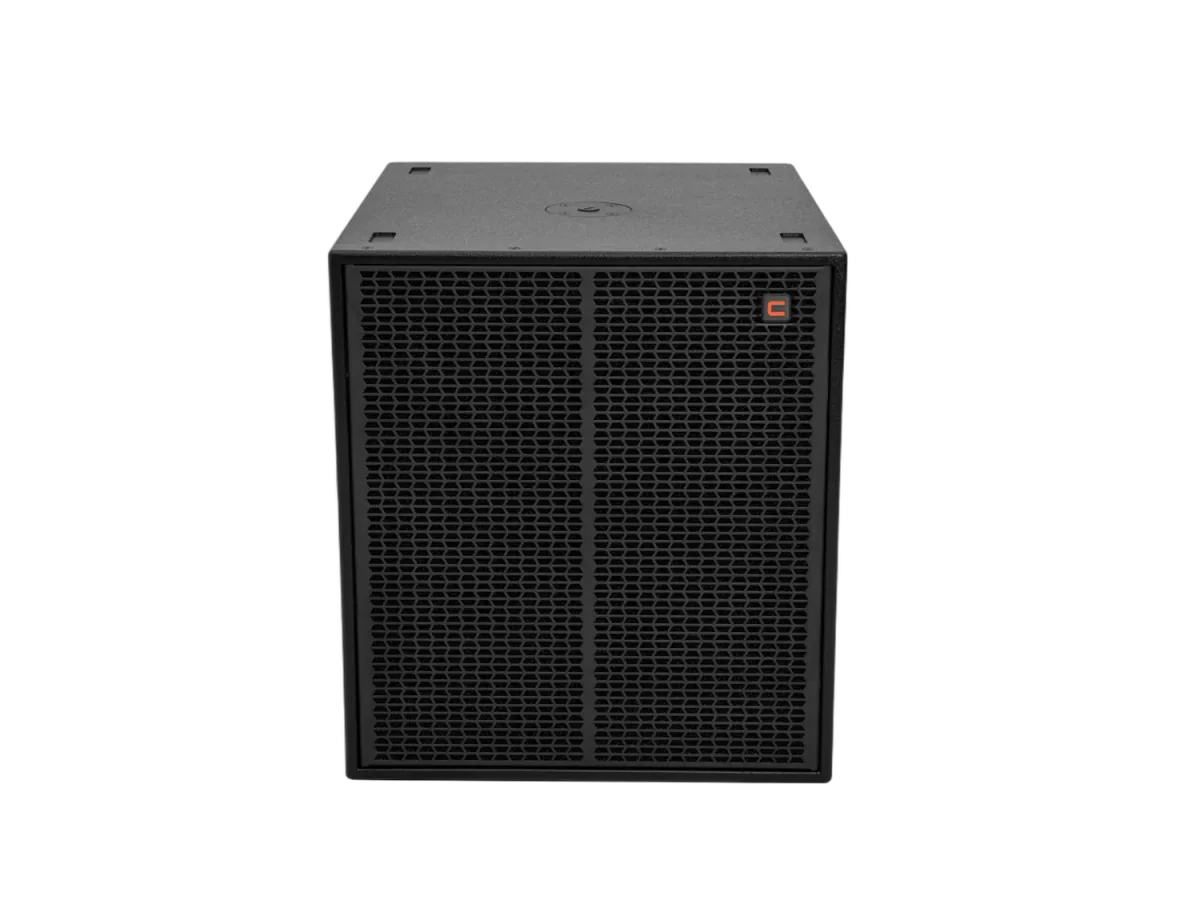

The Celto Pro CSW118V is a versatile, high-performance vented subwoofer designed to deliver powerful and consistent low-frequency reproduction in professional audio installations and mobile applications. Engineered with a robust 18-inch CELTO 18SW1202-8 transducer featuring a 4-inch (100 mm) long-throw voice coil and a die-cast aluminum chassis, it handles 1200 W RMS (4800 W Peak) at a nominal impedance of 8 Ohms.
Operating in active mode, the CSW118V delivers an impressive frequency response from 34 Hz to 1500 Hz, ensuring seamless integration with various mid-high enclosures. The enclosure is constructed from premium exterior-grade birch plywood, heavily braced with tongue-and-groove joints, and finished with a textured waterborne black coating. Equipped with genuine Neutrik Speakon NL4MP connectors and dual M20 thread sockets for secure pole mounting, the CSW118V combines acoustic precision with tour-grade durability.
134 dB
MAXIMUM PEAK SPL
34 Hz – 1.5 kHz · Frequency Response
Technical Specifications
CSW118V · SKU CSW118V
| ACOUSTIC PERFORMANCE | |
|---|---|
| Speaker type | Multi-purpose vented Subwoofer |
| Power Handling (AES standard) | 1200 W RMS / 4800 W Peak |
| Nominal impedance | 8 Ω |
| Average sensitivity | 97 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 127 dB RMS / 134 dB Peak |
| Frequency response (-6 dB no preset) | 34~1500 Hz |
| Nominal directivity (-6 dB) | Omni in usable range |
| Crossover | No, active mode only |
| DRIVERS | |
| LF | 18" CELTO 18SW1202-8 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil | 4" / 100 mm long throw |
| CABINET & MOUNTING | |
| Cabinet | Exterior grade Birch PlywoodHeavily braced with Tongue & Groove |
| Cabinet finish | Textured Waterborne Black coatingAcoustic PU foam behind Front grill |
| Flying hardware | No |
| Mounting hardware | 2pcs M20 thread socket |
| CONNECTIVITY | |
| Connectivity | Genuine NEUTRIK 2pcs Speakon NL4MP |
| PHYSICAL | |
| Speaker size (HxWxD) | 632 × 570 × 650 mm (24.9 × 22.4 × 25.6 in) |
| Speaker Weight | 40 kg (88.2 lb) |
| Shipping information | 46 kg735 x 675 x 750 mm |
| Accessories | CSW118-SBAG (padded cover bag)CPC-70 (pole bar with crank)SUBWHKIT100C (castor wheel kit) |
CSW118V · 2-year distributor warranty · Original product · Engineering support
