Celto Pro · CORE Series
C2.6
SKU: C26

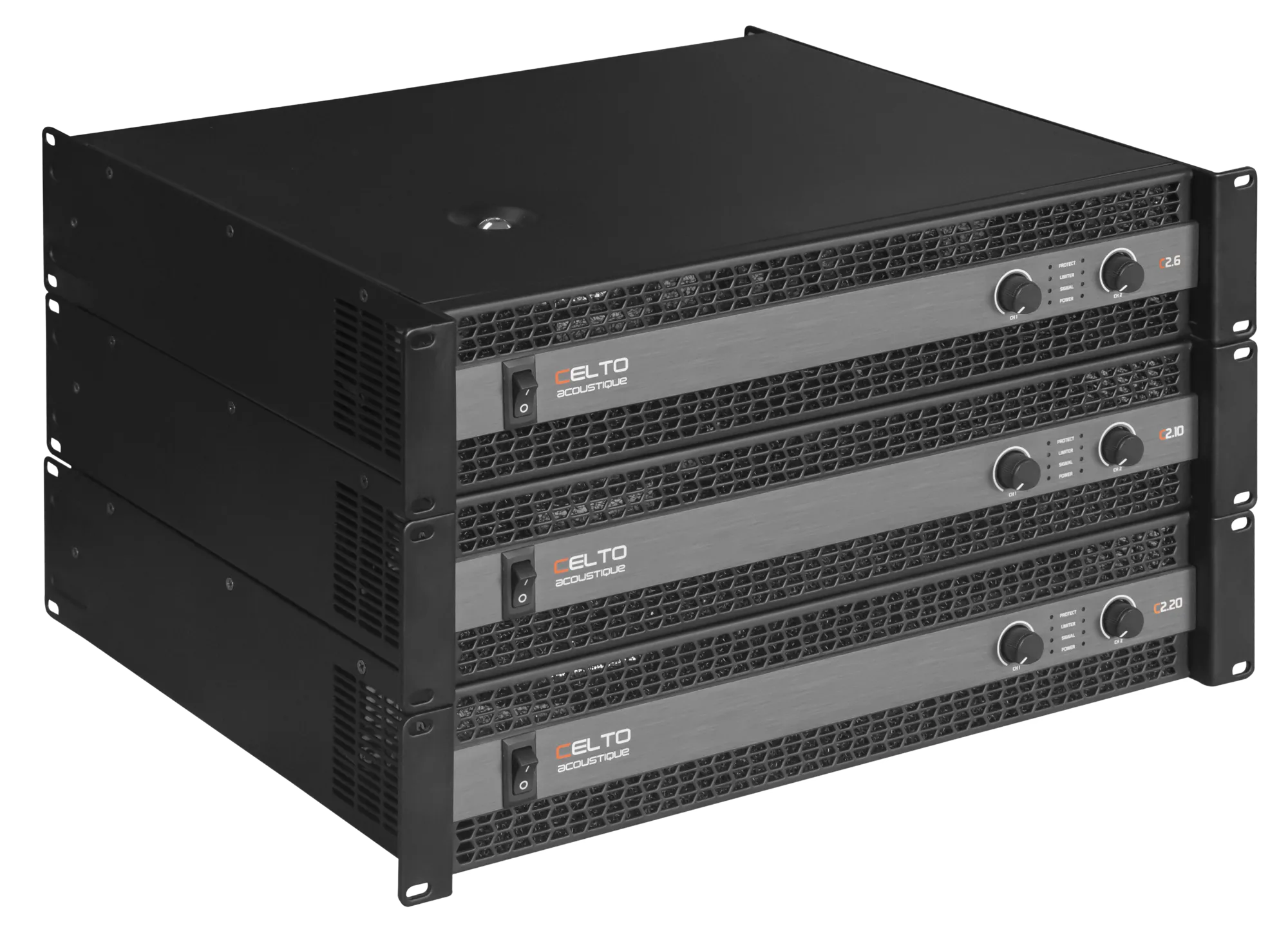

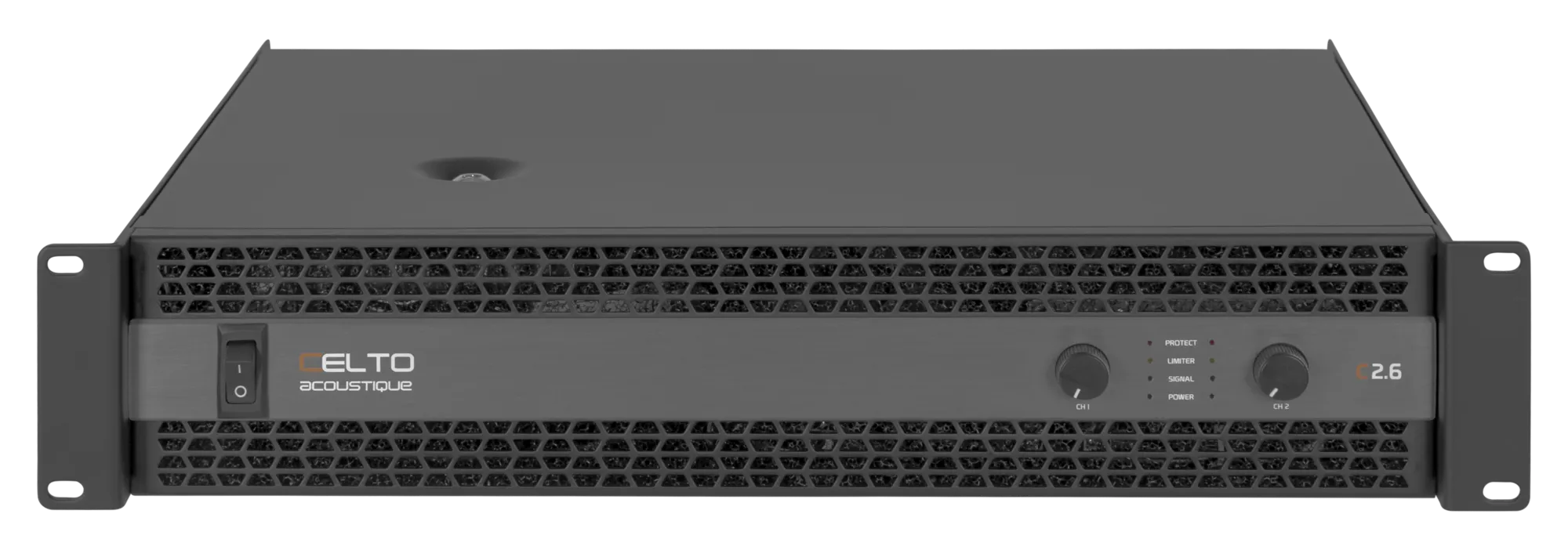

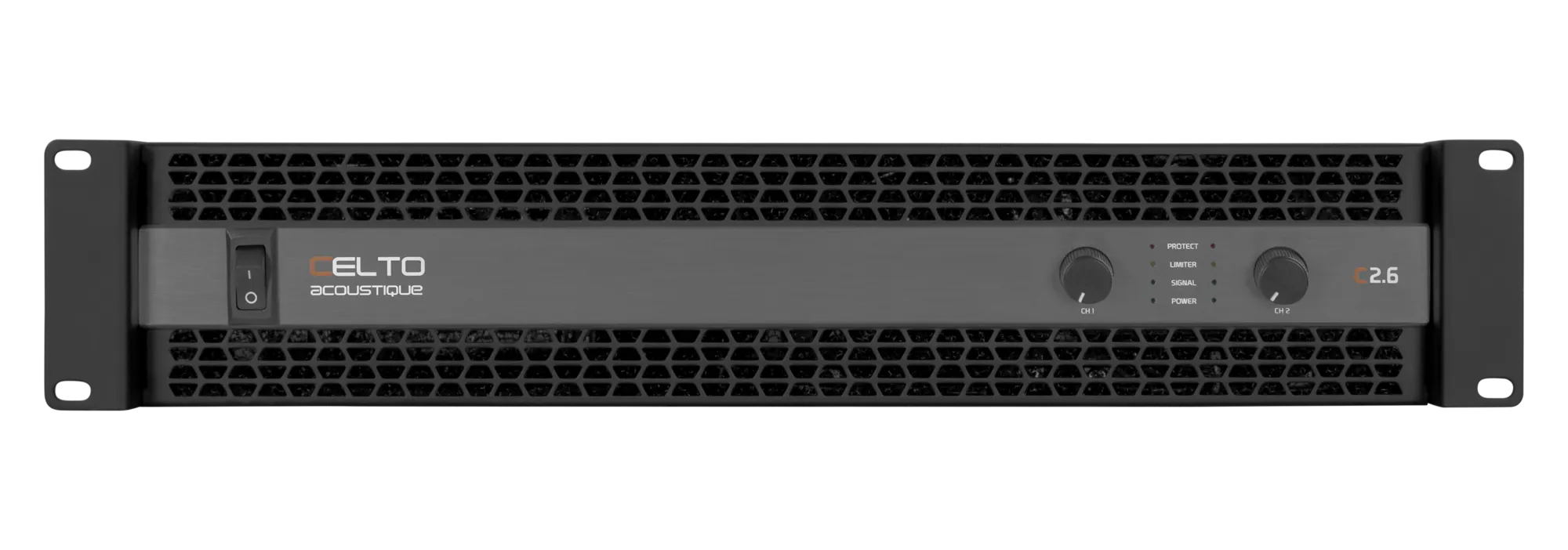

A compact two-channel Class H amplifier in a 2U rack format with a toroidal power supply, delivering 400W per channel at 8 ohms for reliable sound management.
Request a Quote for This Product Request system design Talk to an audio expert · +90 216 469 83 352-year distributor warranty · Original product · Engineering support
Technical Specifications
C2.6 · SKU C26
| ACOUSTIC PERFORMANCE | |
|---|---|
| Frequency Response (-1 dB) | 20 – 20 000 Hz |
| Input Impedance | 20 kΩ balanced |
| POWER OUTPUT | |
| Bridge 8Ω | 1x 1200W |
| Bridge 4Ω | Not recommended |
| SIGNAL PROCESSING | |
| Signal to Noise Ratio (A-weighted) | 108 dB |
| Voltage Gain | 37.3 dB (58 times voltage) |
| Input Connectors | 2x NEUTRIK XLR + 2x NEUTRIK XLR Link |
| CONNECTIVITY | |
| Power Connector | SEETRONIC PowerCon |
| Output Connectors | 2x NEUTRIK Speakon NL4 + 2x speaker Binding post terminals |
| PHYSICAL | |
| Channels | 2 |
| Dimensions (W×H×D) mm | 483×88×378 (2U) |
| Weight Net | 14 kg (30.9 lb) |
| OTHER | |
| RMS Power 8Ω (per ch., EIA 1 kHz 1% THD) | 400W |
| RMS Power 4Ω (per ch.) | 600W |
| RMS Power 2Ω (per ch.) | Not recommended |
| Typical THD | < 0.1 % |
| Crosstalk (1 kHz) | > 65 dB |
| Slew Rate | > 15 V/µs |
| Damping Factor (8Ω) | > 500 (internal) |
| Preamp | Low noise and low distortion circuit with PeakStop Opto-Limiter |
| Output Stage / Class | 2-step Class H (70% efficiency) |
| Power Supply | Linear topology with toroidal transforner |
| Cooling | Temperature regulated long life brush-less fans, front to back airflow |
| series shortname | cseries |
