Celto Pro · CORE Series
C2.20
SKU: C220

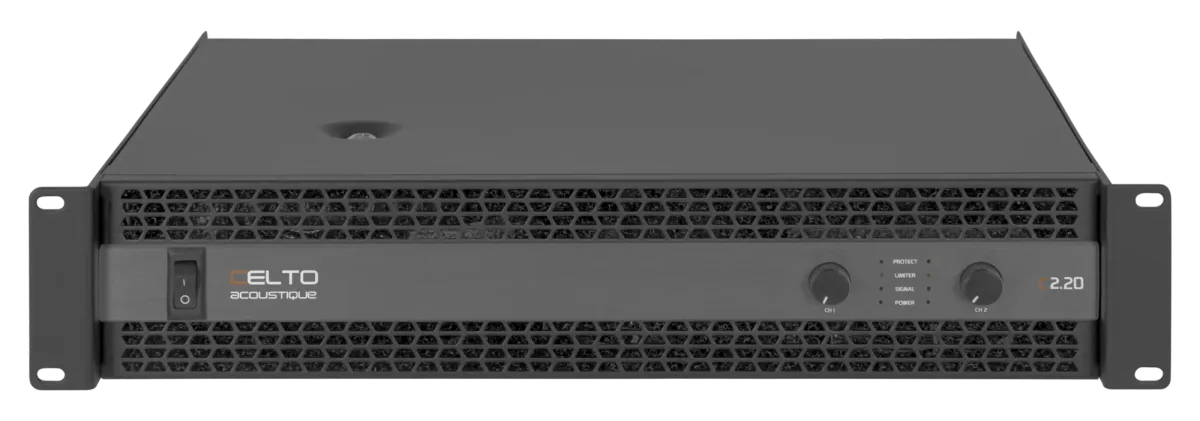

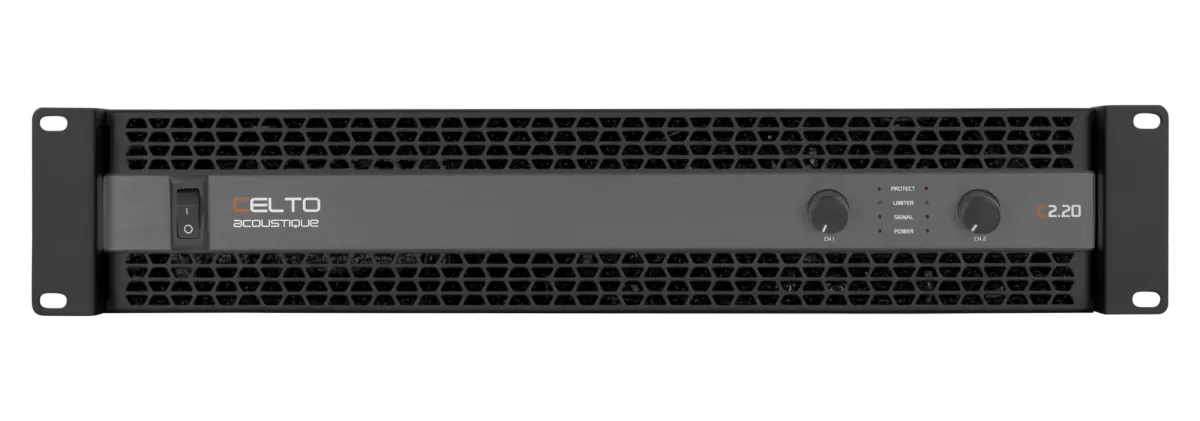

A two-channel 2U amplifier producing 1200W per channel at 8 ohms for high-performance applications, equipped with a toroidal transformer and a highly efficient Class TD output stage.
Request a Quote for This Product Request system design Talk to an audio expert · +90 216 469 83 352-year distributor warranty · Original product · Engineering support
Technical Specifications
C2.20 · SKU C220
| ACOUSTIC PERFORMANCE | |
|---|---|
| Frequency Response (-1 dB) | 20 – 20 000 Hz |
| Input Impedance | 20 kΩ balanced |
| POWER OUTPUT | |
| Bridge 8Ω | 1x 4000W |
| Bridge 4Ω | Not recommended |
| SIGNAL PROCESSING | |
| Signal to Noise Ratio (A-weighted) | 108 dB |
| Voltage Gain | 42dB (126 times voltage) |

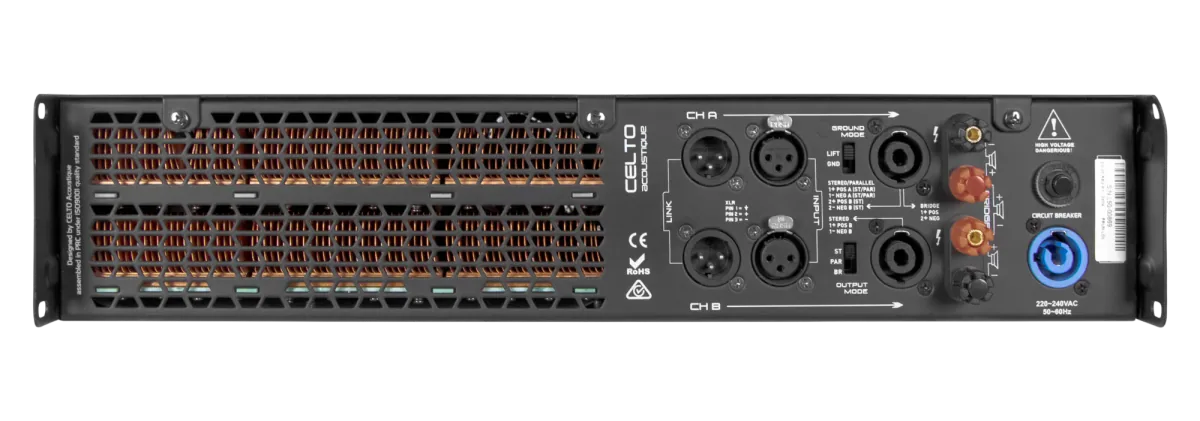

| Input Connectors | 2x NEUTRIK XLR + 2x NEUTRIK XLR Link |
| CONNECTIVITY | |
| Power Connector | SEETRONIC PowerCon |
| Output Connectors | 2x NEUTRIK Speakon NL4 + 2x speaker Binding post terminals |
| PHYSICAL | |
| Channels | 2 |
| Dimensions (W×H×D) mm | 483×88×378 (2U) |
| Weight Net | 19.5 kg (43.0 lb) |
| OTHER | |
| RMS Power 8Ω (per ch., EIA 1 kHz 1% THD) | 1200W |
| RMS Power 4Ω (per ch.) | 2000W |
| RMS Power 2Ω (per ch.) | Not recommended |
| Typical THD | < 0.1 % |
| Crosstalk (1 kHz) | > 65 dB |
| Slew Rate | > 30 V/µs |
| Damping Factor (8Ω) | > 500 (internal) |
| Preamp | Low noise and low distortion circuit with PeakStop Opto-Limiter |
| Output Stage / Class | Class TD (82% efficiency) |
| Power Supply | Linear topology with toroidal transforner |
| Cooling | Temperature regulated long life brush-less fans, front to back airflow |
| series shortname | cseries |
C2.20 · 2-year distributor warranty · Original product · Engineering support
Request a Quote for This ProductDownloads
CORE Series — Other Models
Frequently Asked Questions
What is the price of C2.20?
Pricing depends on your project configuration. Contact our engineering team to determine the most suitable setup and receive a current quote.
What does the distributor warranty cover?
Every system we install is our direct responsibility for two years against manufacturing defects, with scheduled measurement, calibration and maintenance support.
How is product originality guaranteed?
We import all required parts and products directly from the manufacturer's factory, preserving the authenticity of the system.
How does the design & quote process work?
Let us build the acoustic infrastructure of your project to engineering standards with needs analysis, detailed venue exploration, and accurate technical guidance.
