Celto Pro · SUBIUM Series
SU218TL
SKU: SU218TL
Dual 18-inch, 3000W RMS high-performance transmission line subwoofer system.
- Max SPL
- 139 dB RMS / 145 dB Peak
- Frequency Response
- 26 Hz – 900 Hz
- Driver Configuration
- 18"
- Dispersion
- Omni in usable range. Cardioid preset
- Weight
- 111 kg (244.7 lb)
2-year distributor warranty · Original product · Engineering support
Overview

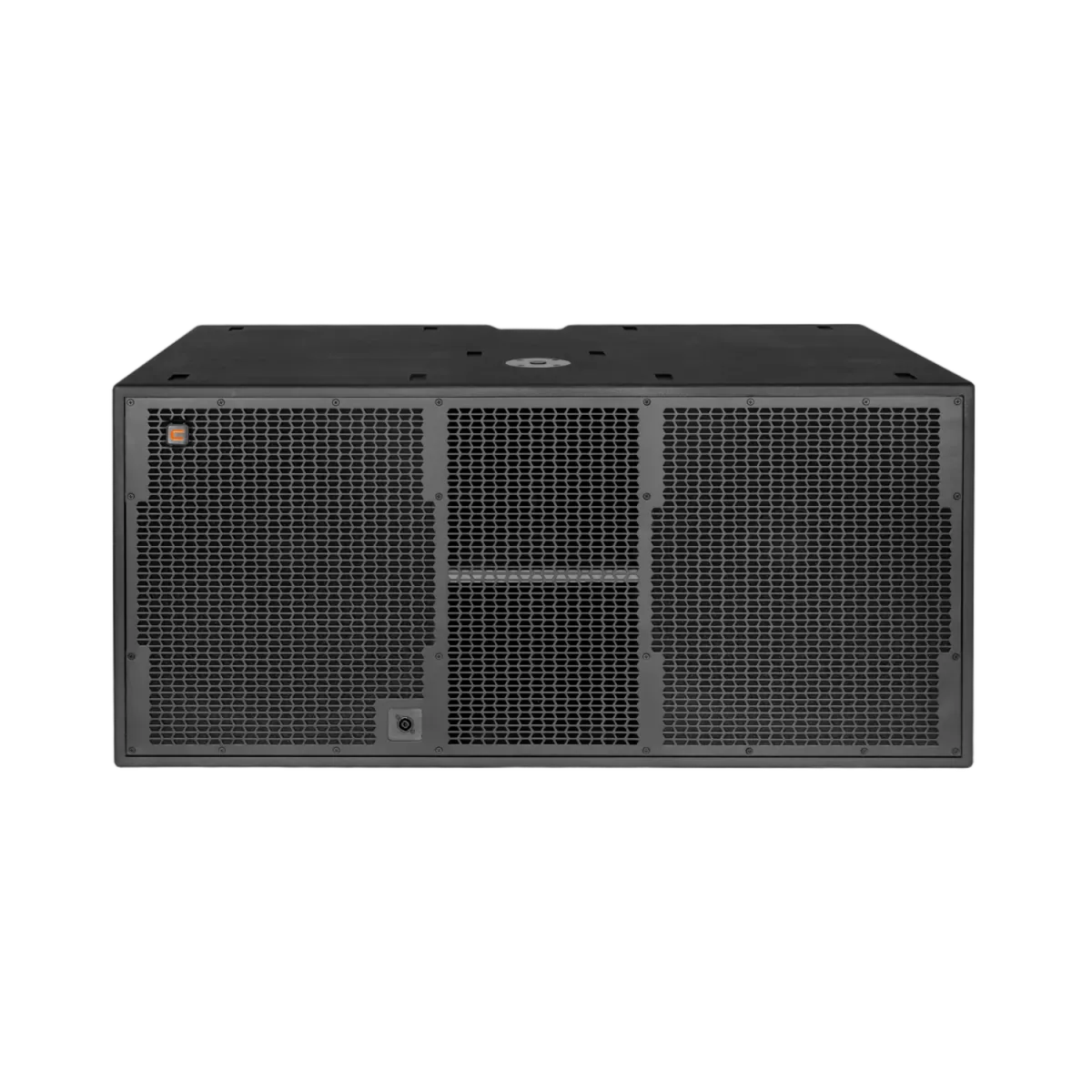

The Celto Acoustique SU218TL is a dual 18-inch transmission line subwoofer system engineered to push the limits of low-frequency reproduction in professional sound reinforcement. Equipped with two custom-designed 18-inch CELTO 18EX1 transducers featuring 4-inch (100 mm) long-throw voice coils and die-cast aluminum chassis, it delivers stable performance under extreme power demands.
With a power handling of 3000 W RMS (12000 W Peak), the system operates across a wide frequency range from 26 Hz to 900 Hz. It achieves an average sensitivity of 104 dB (1W/1m) and a maximum SPL of 139 dB RMS (145 dB Peak), making it suitable for large-scale touring and high-end fixed installations. The enclosure is constructed from marine-grade Baltic birch plywood, heavily braced with tongue-and-groove joints, and finished with a touring-grade rubberized PolyUrea black coating. Featuring genuine Neutrik Speakon NL4MP connectors (two on the rear, one on the front), the SU218TL supports both standard and cardioid array configurations seamlessly.
145 dB
MAXIMUM PEAK SPL
26 Hz – 900 Hz · Frequency Response
Technical Specifications
SU218TL · SKU SU218TL
| ACOUSTIC PERFORMANCE | |
|---|---|
| Speaker type | Transmission line Subwoofer |
| Power Handling (AES standard) | 3000 W RMS / 12000 W Peak |
| Nominal impedance | 4 Ω |
| Average sensitivity | 104 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 139 dB RMS / 145 dB Peak |
| Frequency response (-6 dB no preset) | 26~900 Hz |
| Nominal directivity (-6 dB) | Omni in usable range. Cardioid preset |
| Crossover | No, active mode only |
| DRIVERS | |
| LF | 2x 18" CELTO 18EX1 505-8 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil | 4" / 100 mm long throw |
| CABINET & MOUNTING | |
| Cabinet | Marine grade Baltic Birch PlywoodHeavily braced with Tongue & Groove |
| Cabinet finish | Touring Grade Rubberized PolyUrea Black coatingAcoustic PU foam behind Front grill |
| Flying hardware | No |
| Mounting hardware | 2pcs M20 thread socket |
| CONNECTIVITY | |
| Connectivity | Genuine NEUTRIK 2pcs Speakon NL4MP on rear1pc Speakon NL4MP on front |
| PHYSICAL | |
| Speaker size (HxWxD) | 580 × 1246 × 728 mm (22.8 × 49.1 × 28.7 in) |
| Speaker Weight | 111 kg (244.7 lb) |
| Shipping information | 123kg700 x 1400 x 850 mm |
| Accessories | SU218TL-SBAG (padded cover bag)CPC-70 (pole bar with crank)SUBWHKIT100C (castor wheel kit) |
